• Air conditioning, dual-zone automatic climate control
• Assist handle, front passenger and driver on A-pillars

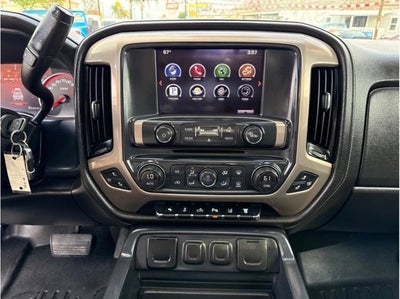

• Audio system, 8" Diagonal Color Touch Screen Navigation with IntelliLink, AM/FM/SiriusXM with USB ports, auxiliary jack, SD card slot, Bluetooth® streaming audio for music and most phones, hands-free smartphone integration, Pandora Internet radio and voice-activated technology for radio and phone
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats).
• Console, floor mounted, reconfigurable with moveable cup holders, cell phone storage, power cord management and hanging file holder capability
• Cruise control, steering wheel-mounted
• Defogger, rear-window electric
• Door locks, power
• Floor mats, color-keyed carpeted first and second row
• Mirror, inside rearview auto-dimming
• Pedals, power-adjustable
• Power outlet, 110-volt AC
• Remote Keyless Entry
• Remote vehicle starter system
• Seat trim, Leather-appointed front seats

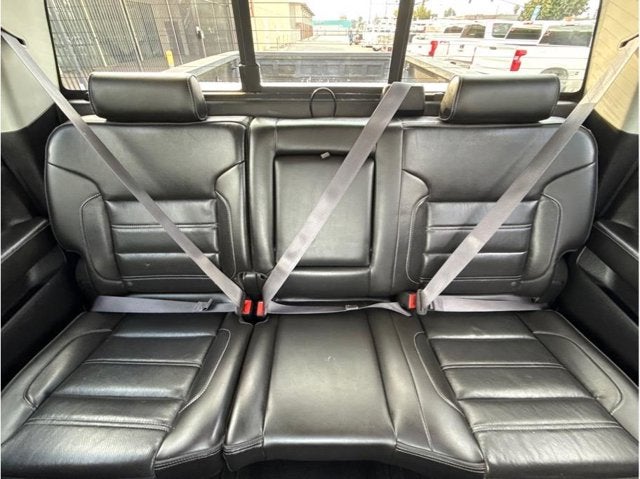

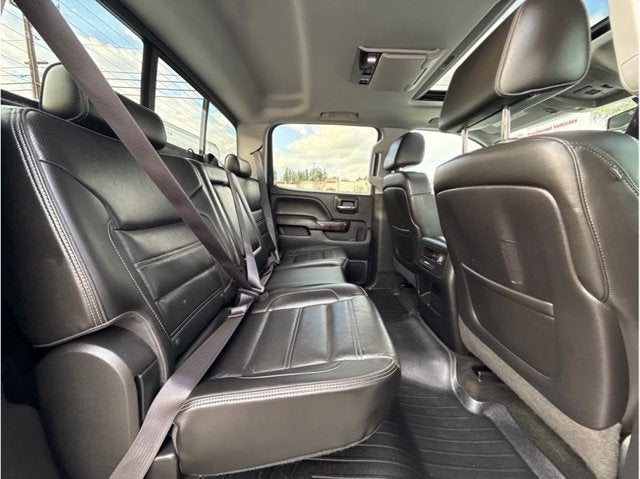

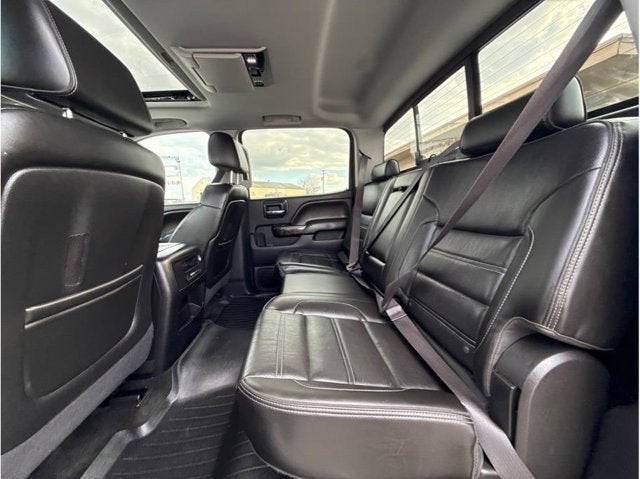

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

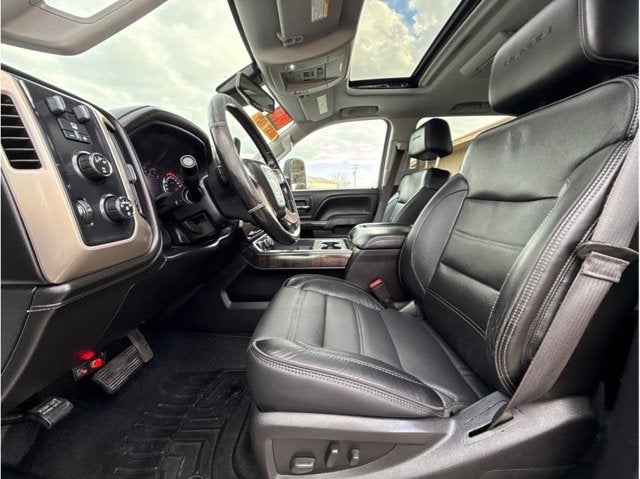

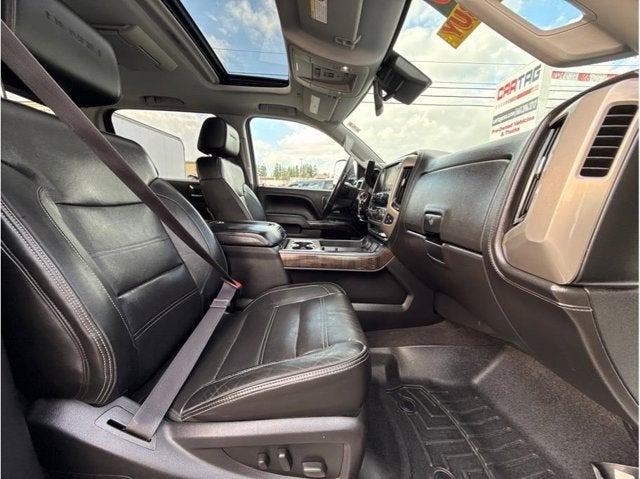

• Seating, heated and cooled perforated leather-appointed front bucket
• Seats, front full-feature leather-appointed bucket with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters, including 2-way power lumbar control, 2-position driver memory, adjustable head restraints, (D07) floor console and storage pockets.
• Single-slot CD/MP3 player (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• SiriusXM Satellite Radio (subscription required)
• Steering column, manual Tilt-Wheel and telescoping
• Steering wheel audio controls

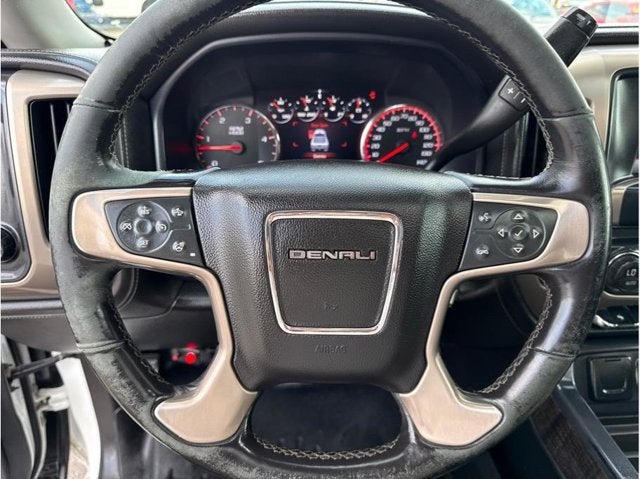

• Steering wheel, heated, leather wrapped with audio and cruise controls
• Theft-deterrent system, unauthorized entry
• Universal Home Remote (Not included when (VYU) Snow Plow Prep Package is ordered.)
• Visors, driver and front passenger illuminated vanity mirrors
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Steering, Recirculating ball
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Deleted when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)
• Underbody Shield, frame-mounted shields includes front underbody shield starting behind front bumper and running to first cross-member, protecting front underbody, oil pan, differential case and transfer case

• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Required with (C7A) 10,000 lb. (4536 kg) GVWR. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• Front and Rear Park Assist, Ultrasonic
• Rear Vision Camera with dynamic guide lines
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist

SEATS, FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET WITH (KA1) HEATED SEAT CUSHIONS AND SEAT BACKS.

• Includes 10-way power driver and front passenger seat adjusters
• including 2-way power lumbar control
• 2-position driver memory
• adjustable head restraints
• (D07) floor console and storage pockets. (STD)

WHEEL, 17" X 6.5" (43.2 CM X 16.5 CM) FULL-SIZE, STEEL SPARE

• Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.

LPO, ASSIST STEPS, CHROMED TUBULAR, 6" RECTANGULAR

• (dealer-installed)

ENTERTAINMENT PACKAGE, REAR SEAT DVD/BLU-RAY PLAYER

• with 9.2 inch LCD display
• 2 sets of wireless headphones and A/V remote control

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

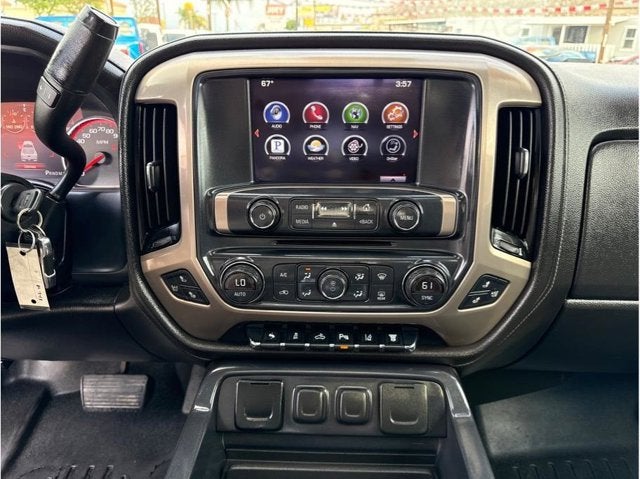

AUDIO SYSTEM, 8" DIAGONAL COLOR TOUCH SCREEN NAVIGATION WITH INTELLILINK, AM/FM/SIRIUSXM

• with USB ports
• auxiliary jack
• SD card slot
• Bluetooth® streaming audio for music and most phones
• hands-free smartphone integration
• Pandora Internet radio and voice-activated technology for radio and phone

SUSPENSION PACKAGE, STANDARD

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

PICKUP BOX, WIDESIDE

• (STD)

WHEELS, 17" (45.7 CM) FORGED POLISHED ALUMINUM

• includes 17" steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.

LAMPS, SMOKED AMBER ROOF MARKER

• (required with dual rear wheels)

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member

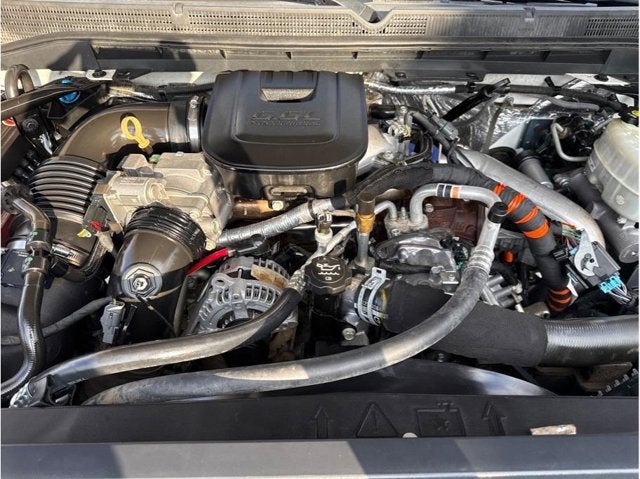

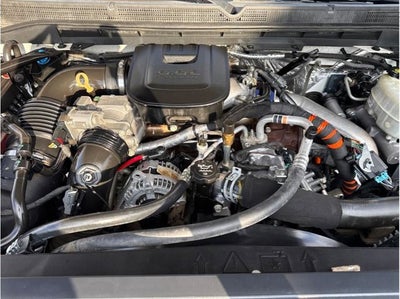

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm)

DENALI PREFERRED EQUIPMENT GROUP

• includes standard equipment

DURAMAX PLUS PACKAGE

• includes (LML) Duramax 6.6L Turbo Diesel V8 engine
• (MW7) Allison 1000 6-speed automatic transmission and (Y65) Driver Alert Package

LICENSE PLATE KIT, FRONT

• Note: (VK3) deletes center lower bumper filler panel.

• SEATS FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET WITH (KA1) HEATED SEAT CUSHIONS AND SEAT BACKS. Includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control 2-position driver memory adjustable head restraints (D07) floor console and storage pockets. (STD)
• WHEEL 17" X 6.5" (43.2 CM X 16.5 CM) FULL-SIZE STEEL SPARE Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• LPO ASSIST STEPS CHROMED TUBULAR 6" RECTANGULAR (dealer-installed)
• SUMMIT WHITE
• ENGINE BLOCK HEATER
• ENTERTAINMENT PACKAGE REAR SEAT DVD/BLU-RAY PLAYER with 9.2 inch LCD display 2 sets of wireless headphones and A/V remote control
• SUNROOF POWER
• REAR AXLE 3.73 RATIO
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• AUDIO SYSTEM 8" DIAGONAL COLOR TOUCH SCREEN NAVIGATION WITH INTELLILINK AM/FM/SIRIUSXM with USB ports auxiliary jack SD card slot Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio and voice-activated technology for radio and phone
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• BRAKES 4-WHEEL ANTILOCK 4-WHEEL DISC WITH DUAL REAR WHEELS
• TIRES LT235/80R17E ALL-TERRAIN
• PICKUP BOX WIDESIDE (STD)
• PAINT SOLID
• JET BLACK PERFORATED LEATHER-APPOINTED SEAT TRIM
• WHEELS 17" (45.7 CM) FORGED POLISHED ALUMINUM includes 17" steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• LAMPS SMOKED AMBER ROOF MARKER (required with dual rear wheels)
• DRIVER ALERT PACKAGE includes Lane Departure Warning Forward Collision Alert and Safety Alert Seat
• TIRE SPARE LT235/80R17E ALL-TERRAIN
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member
• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B20-DIESEL COMPATIBLE (397 hp [296.0 kW] @ 3000 rpm 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm)
• DENALI PREFERRED EQUIPMENT GROUP includes standard equipment
• GVWR 13 025 LBS. (5908 KG) WITH DUAL REAR WHEELS
• DURAMAX PLUS PACKAGE includes (LML) Duramax 6.6L Turbo Diesel V8 engine (MW7) Allison 1000 6-speed automatic transmission and (Y65) Driver Alert Package
• LICENSE PLATE KIT FRONT Note: (VK3) deletes center lower bumper filler panel.
• EXHAUST BRAKE
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Running Boards/Side Steps
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Privacy Glass
• Sliding Rear Window
• AM/FM Stereo
• Navigation System
• Auxiliary Audio Input
• Smart Device Integration
• CD Player
• Premium Sound System
• Power Driver Seat
• Power Passenger Seat
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Cooled Front Seat(s)
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Heated Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Keyless Entry
• Remote Engine Start
• Adjustable Pedals
• Cruise Control
• Universal Garage Door Opener
• Security System
• Climate Control
• Multi-Zone A/C
• A/C
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Navigation from Telematics
• Rear Parking Aid
• Back-Up Camera

• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): 4652
• Curb Weight - Front (lbs): 3930
• Curb Weight - Rear (lbs): 3000
• Curb Weight - Rear (lbs): 2962
• Gross Vehicle Weight Rating Cap (lbs): 13025
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16900
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1690
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1370
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4225
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
• Maximum Trailering Capacity (lbs): 22600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QZT
• Front Tire Order Code: QWF
• Rear Tire Order Code: QZT
• Rear Tire Order Code: QWF
• Spare Tire Order Code: ZZT
• Front Tire Size: LT235/80R17E
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT235/80R17E
• Rear Tire Size: LT265/70R18E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.70
• Length, Overall w/o rear bumper (in): 258.4
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.07
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.41
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
