• Air conditioning, dual-zone manual climate control with individual climate settings for driver and right-front passenger
• Assist handle, front passenger (Also includes rear outboard passenger assist handles on Extended and Crew Cab models.)
• Audio system feature, speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab models.)
• Audio system, AM/FM stereo with CD player, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS) and speed-compensated volume (Upgradeable to (UC6) AM/FM stereo with 6-disc in-dash CD changer.)
• Cigarette lighter, on instrument panel
• Coat hook, driver-side rear (Also includes passenger-side coat hook on Extended and Crew Cab models.)
• Console, overhead mini with map lights
• Cruise control, electronic with set and resume speed
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
• Defogger, rear-window electric (Not available with (A28) sliding rear window.)
• Door locks, power
• Driver Information Center that monitors numerous different systems depending on vehicle equipment
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (May be substituted with (BG9) rubberized vinyl floor covering on Regular and Extended Cab models. Not available with (**V) vinyl interior trim.)
• Lighting, interior with dome and reading lights, backlit instrument panel switches and door handle-activated illuminated entry
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Remote Keyless Entry, with 2 transmitters, panic button and content theft alarm
• Seat trim, Custom Cloth

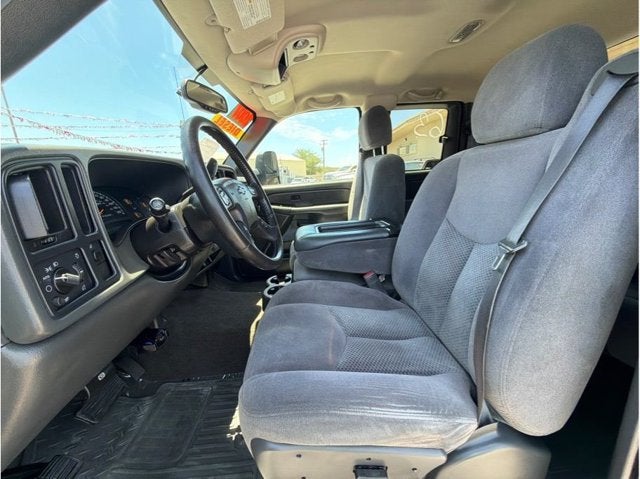

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining, center fold-down armrest with storage, adjustable outboard head restraints and storage pockets on Extended Cab models

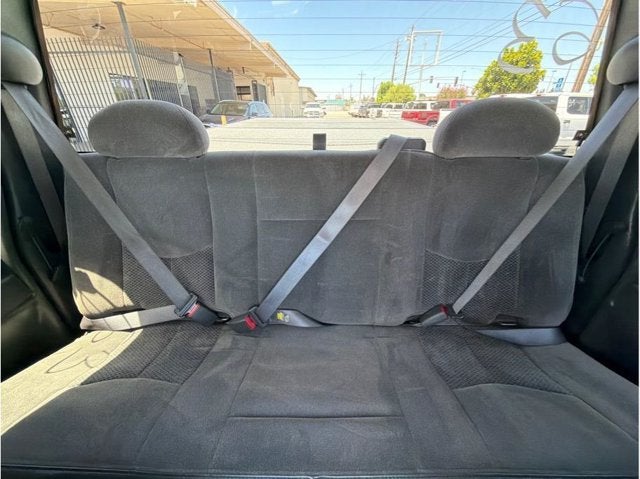

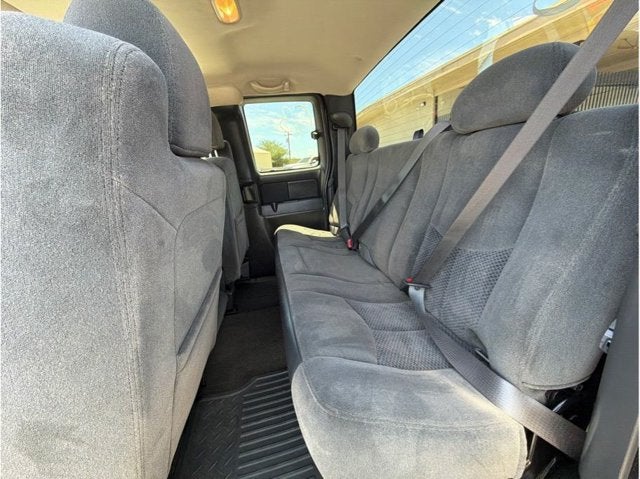

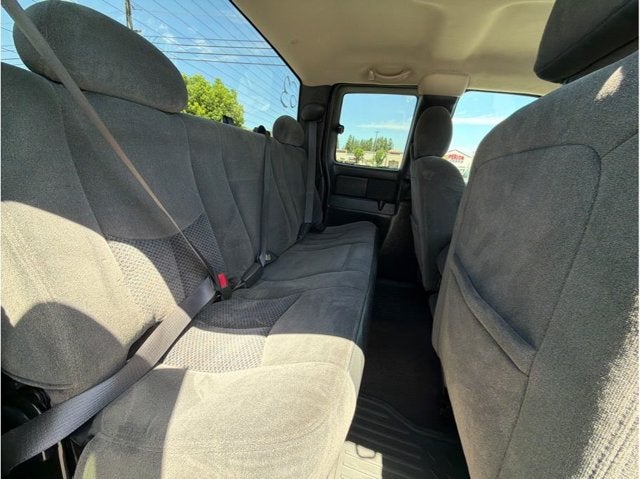

• Seats, rear bench, 3-passenger, folding (includes child seat top tether anchor) (Not available with Regular Cab models.)

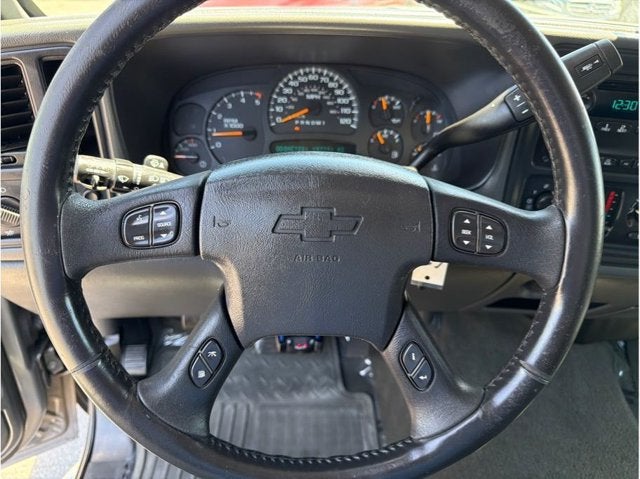

• Steering wheel, leather-wrapped, Black with theft-deterrent locking feature
• Theft-deterrent system, vehicle, PASSlock II
• Visors, driver and front passenger, padded with cloth trim, extenders, pocket on driver-side and vanity mirror on passenger-side, Shale-colored
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle-up reminder and turn signal on
• Windows, power with driver and front passenger Express-Down

• Alternator, 105 amps (Not available with (VYU) Snow Plow Prep Package.)
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, hydroformed ladder-type
• GVWR, 9200 lbs. (4173 kg) (Must specify on CC25903, CK25753, and C*25743 models.)
• Pickup box, Fleetside
• Rear wheel drive
• Recovery hooks, front, frame-mounted
• Steering, power
• Suspension Package, Handling/Trailering, heavy-duty, includes 36 mm piston monotube shocks
• Suspension, front independent with torsion bar and stabilizer bar
• Suspension, rear, 2-stage multi-leaf springs, semi-elliptic
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Tires, LT245/75R16E all-season, blackwall (Includes 5 tires with (E63) Fleetside pickup box. Includes 4 tires with (ZW9) pickup box delete.)
• Tools, mechanical jack and wheel wrench located in back of cab

• Air bags, frontal, driver and right-front passenger (Regular and Extended Cab models includes passenger-side deactivation switch. Never place a rear- facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your childs age and size. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime Running Lamps, with automatic exterior lamp control

HEAVY-DUTY POWER PACKAGE

• includes (LBZ) Duramax 6.6L Turbo Diesel engine
• (MW7) Allison 1000 6-speed automatic transmission and (G80) heavy-duty rear locking differential

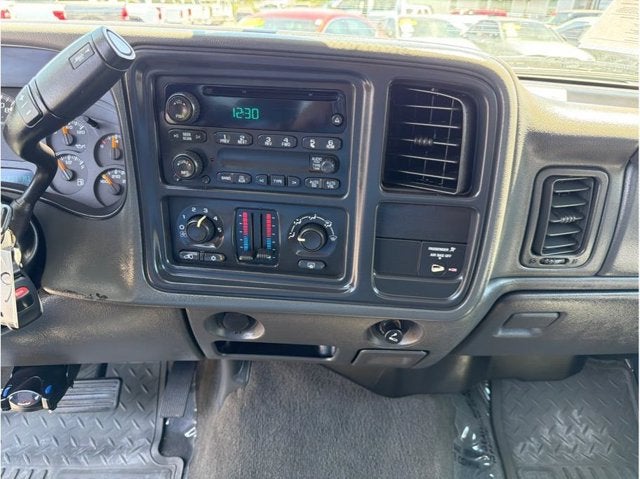

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume (STD)

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WITH OVERDRIVE, ELECTRONIC ENGINE GRADE BRAKING AND TOW/HAUL MODE.

• Includes (KNP) external transmission oil cooler

WHEELS, 4-16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG POLISHED FORGED ALUMINUM

• includes chrome center caps and steel spare

ONSTAR, 1-YEAR OF SAFE AND SOUND PLAN.

• Includes Automatic Notification of Air Bag Deployment
• Stolen Vehicle Location Assistance
• Emergency Services
• Roadside Assistance
• Remote Door Unlock
• OnStar Vehicle Diagnostics
• Hands-Free Calling
• AccidentAssist and Remote Horn & Lights

SEAT TRIM, CUSTOM CLOTH

• (STD)

LT1 PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING, CENTER FOLD-DOWN ARMREST

• with storage
• adjustable outboard head restraints and storage pockets on Extended Cab models (STD)

XM SATELLITE RADIO

• With a wide variety of programming
• XM has something to excite any driver. Whether you want to be entertained or informed
• to laugh
• think
• or sing
• XM has the perfect channel for you - coast-to-coast
• and in digital-quality sound. 3 trial months -no obligation

TIRES, LT245/75R16E ALL-SEASON, BLACKWALL

• (STD) (Includes 5 tires with (E63) Fleetside pickup box. Includes 4 tires with (ZW9) pickup box delete.)

BATTERY, HEAVY-DUTY DUAL 770 COLD-CRANKING AMPS, MAINTENANCE-FREE

• with rundown protection and retained accessory power

AIR CLEANER, HIGH-CAPACITY

• (Included with (LBZ) Duramax 6.6L Turbo Diesel V8 engine
• (Z82) heavy-duty trailering equipment or (VYU) Snow Plow Prep Package.)

ENGINE BLOCK HEATER

• (Included with (LBZ) Duramax 6.6L Turbo Diesel V8 engine.)

PAINT, SOLID

• (STD)

TIRE, SPARE LT245/75R16E ALL-SEASON, BLACKWALL

• located at rear underbody of vehicle

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION

• integrated turn signal indicators and lower convex spotter glass (convex glass is not heated)

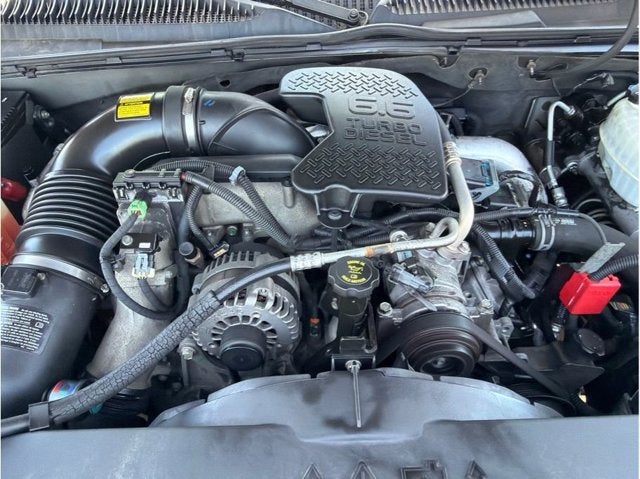

ENGINE, DURAMAX 6.6L TURBO DIESEL V8

• (360 hp [268.0 kW] @ 3200 rpm
• 650 lb-ft of torque [881.0 N-m] @ 1600 rpm) Includes (TQ3) heavy-duty dual
• 770 cold-cranking amp battery
• (KG3) 145-amp alternator
• (K47) high-capacity air cleaner and (K05) engine block heater)

ONSTAR PLUS PACKAGE

• includes (U2K) XM Satellite Radio
• (UE1) OnStar
• and (UK3) steering-wheel mounted audio controls

TRAILERING EQUIPMENT, HEAVY-DUTY

• includes trailering hitch platform
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• instrument panel jumper wiring harness for electric trailer brake controller and 1-way sealed connector for center high-mounted stop/brake lamp and (K47) high-capacity air cleaner

• HEAVY-DUTY POWER PACKAGE includes (LBZ) Duramax 6.6L Turbo Diesel engine (MW7) Allison 1000 6-speed automatic transmission and (G80) heavy-duty rear locking differential
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume (STD)
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED WITH OVERDRIVE ELECTRONIC ENGINE GRADE BRAKING AND TOW/HAUL MODE. Includes (KNP) external transmission oil cooler
• WHEELS 4-16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG POLISHED FORGED ALUMINUM includes chrome center caps and steel spare
• SEAT ADJUSTER DRIVER 6-WAY POWER
• COOLING AUXILIARY EXTERNAL TRANSMISSION OIL COOLER HEAVY-DUTY AIR-TO-OIL
• OnStar Equipped (subscription required)
• REAR AXLE 3.73 RATIO
• STEERING WHEEL CONTROLS MOUNTED AUDIO AND DRIVER INFORMATION CENTER CONTROLS
• SEAT TRIM CUSTOM CLOTH (STD)
• LT1 PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING CENTER FOLD-DOWN ARMREST with storage adjustable outboard head restraints and storage pockets on Extended Cab models (STD)
• XM SATELLITE RADIO (subscription required)
• TIRES LT245/75R16E ALL-SEASON BLACKWALL (STD) (Includes 5 tires with (E63) Fleetside pickup box. Includes 4 tires with (ZW9) pickup box delete.)
• BATTERY HEAVY-DUTY DUAL 770 COLD-CRANKING AMPS MAINTENANCE-FREE with rundown protection and retained accessory power
• AIR CLEANER HIGH-CAPACITY (Included with (LBZ) Duramax 6.6L Turbo Diesel V8 engine (Z82) heavy-duty trailering equipment or (VYU) Snow Plow Prep Package.)
• ENGINE BLOCK HEATER (Included with (LBZ) Duramax 6.6L Turbo Diesel V8 engine.)
• PAINT SOLID (STD)
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL located at rear underbody of vehicle
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION integrated turn signal indicators and lower convex spotter glass (convex glass is not heated)
• ENGINE DURAMAX 6.6L TURBO DIESEL V8 (360 hp [268.0 kW] @ 3200 rpm 650 lb-ft of torque [881.0 N-m] @ 1600 rpm) Includes (TQ3) heavy-duty dual 770 cold-cranking amp battery (KG3) 145-amp alternator (K47) high-capacity air cleaner and (K05) engine block heater)
• ONSTAR PLUS PACKAGE includes (U2K) XM Satellite Radio (UE1) OnStar and (UK3) steering-wheel mounted audio controls
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector instrument panel jumper wiring harness for electric trailer brake controller and 1-way sealed connector for center high-mounted stop/brake lamp and (K47) high-capacity air cleaner
• Rear Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Automatic Headlights
• Daytime Running Lights
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• Cloth Seats
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Immobilizer
• Rear Defrost
• Cruise Control
• Power Door Locks
• Power Windows
• Security System
• Keyless Entry
• Power Door Locks
• Multi-Zone A/C
• A/C
• AM/FM Stereo
• CD Player
• Power Outlet
• Auto-Dimming Rearview Mirror
• Passenger Vanity Mirror
• Front Reading Lamps
• Front Reading Lamps
• ABS
• 4-Wheel Disc Brakes
• Driver Air Bag
• Passenger Air Bag
• Daytime Running Lights
• Automatic Headlights

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4500
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3079
• Curb Weight - Rear (lbs): 2287
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 22000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 10200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3875
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2550
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4500
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 32
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: ZHH
• Spare Tire Order Code: QIZ
• Front Tire Size: LT245/75R16
• Rear Tire Size: LT245/75R16
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 2335
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Aluminum
• Front Wheel Material: Steel
• Rear Wheel Material: Aluminum
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 50.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 157.5
• Length, Overall w/o rear bumper (in): 249.0
• Width, Max w/o mirrors (in): 79.7
• Height, Overall (in): 76.2
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.2
• Front Bumper to Back of Cab (in): 138.6
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.1
• Ground Clearance, Rear (in): 12.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.6
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 73.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 38.4
• Second Leg Room (in): 33.7
• Second Shoulder Room (in): 66.3
• Second Hip Room (in): 61.5
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD Classic
• Body Style: Ext Cab 8' Fleetside
• Body Code: E63
