• Air conditioning, dual-zone, automatic, individual climate settings for driver and right front passenger (Must be substituted with (CJ3) Air conditioning, dual-zone, manual when (VYU) Snow Plow Prep Package is ordered. - Not available with (VYU) Snow Plow Prep Package)
• Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab Models)
• Cigarette lighter, on instrument panel
• Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models)
• Console, floor, includes storage compartment and dual cupholders
• Console, overhead mini, includes map lights (Not available with (CF5) Sunroof, power)
• Cruise control, electronic with set and resume speed, includes telltale in instrument panel cluster
• Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models)
• Defogger, rear-window, electric (Not available with (A28) Window, rear sliding)
• Door locks, power
• Door trim, side reflectors (Also includes lights on front doors with SLE1, SLE2 and SLT Models)
• Floor covering, color-keyed carpeting, and rubberized vinyl floormats (with Extended and Crew Cabs, includes rear floormats)
• Headliner, Shale-colored cloth, with matching retainer moldings
• Keyless entry, remote, includes 2 transmitters, panic button and content theft alarm
• Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry
• Mirror, inside rearview, electrochromic (light-sensitive auto dimming), 8-point compass and outside temperature indicator
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Seat adjuster, power, driver 6-way (With (AN3) Seats, front power reclining full-feature buckets, includes 10-way adjuster)
• Seat adjuster, power, front passenger 10-way (Included and only available with (AN3) Seats, front power reclining full-feature buckets)
• Seat trim, Leather (Not available with Regular Cab Models. - Leather seating surfaces on Extended Cab and Leather appointed, front and rear on Crew Cab Models)

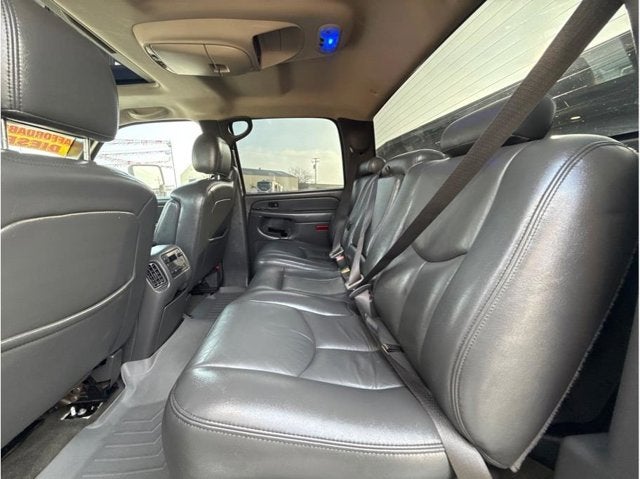

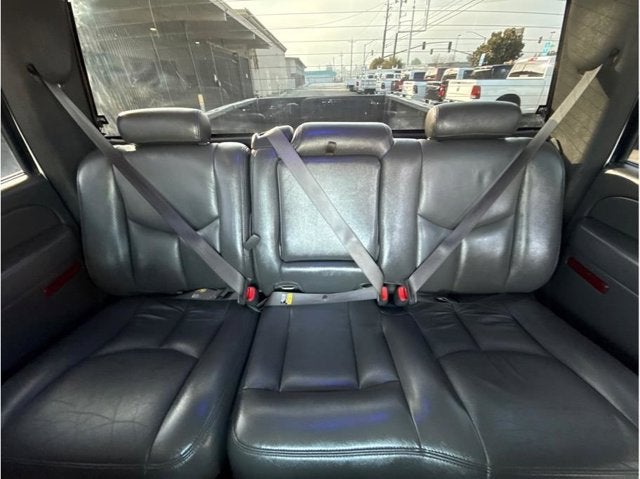

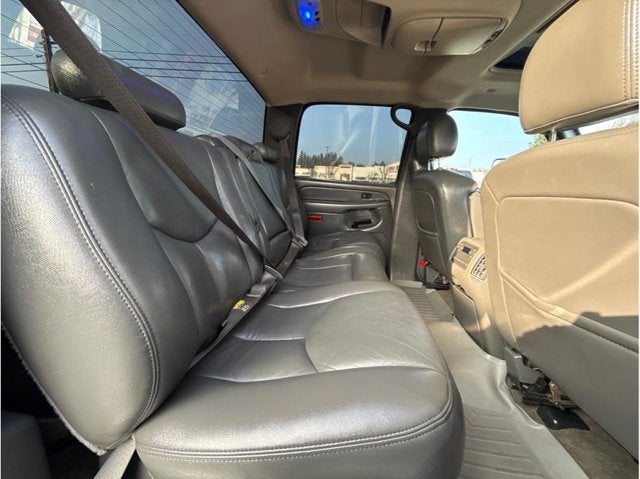

• Seat, rear bench, folding, 3-passenger (includes top tethers and lower anchors for child seat)
• Seats, front power reclining full-feature buckets, includes adjustable head restraints, floor console, driver and passenger power lumbar, driver and front passenger 10-way power adjustable, dual inboard armrests, heated driver and passenger cushion and back, 2-position driver-side memory and storage pockets
• Sound system feature, Bose Premium speaker system
• Sound system feature, rear audio controls, includes dual headphone jacks (headphones not included), power outlet and controls for volume, station selection and media (Requires Crew Cab Models)
• Sound system feature, steering wheel mounted radio controls, Radio and Driver Information Center (DIC). Provides access to enhanced Driver Information Center features and information
• Sound system, ETR AM/FM stereo with 6-disc CD changer, includes seek-and-scan, digital clock, auto-tone control, speed-compensated volume, TheftLock, Radio Data System (RDS), and Bose speaker system (includes 6-speakers, Bose amplifier and Bose Subwoofer)

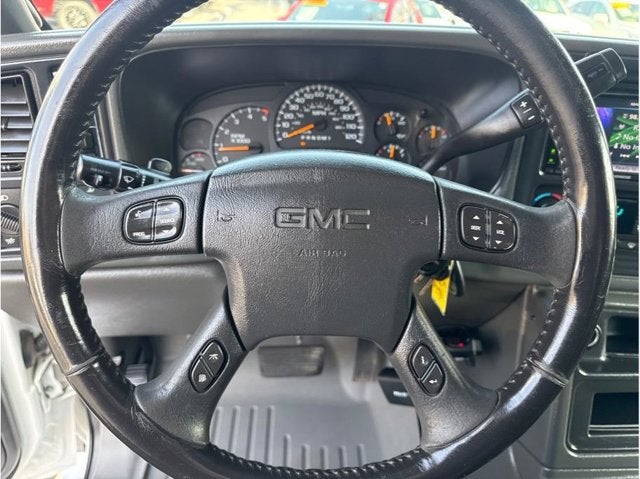

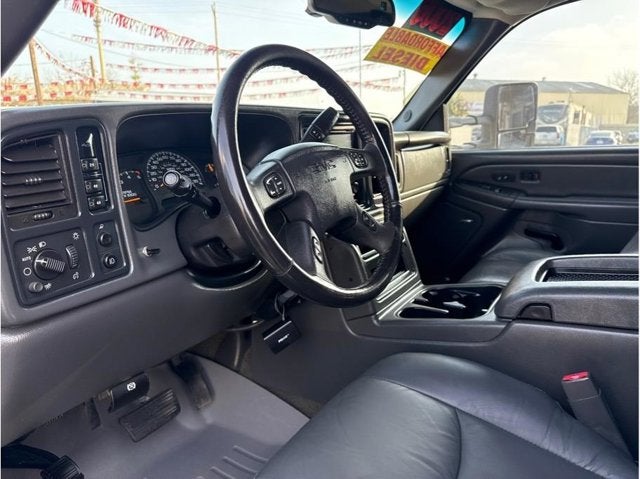

• Steering wheel, leather-wrapped rim, Black, steel sleeve, includes theft-deterrent locking feature
• Theft-deterrent system, PASSLock II
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder, turn signal on
• Windows, power, includes driver and passenger express-down

• Alternator, 105 amps
• Brakes, 4-wheel antilock, 4-wheel disc
• Dual rear wheels (Standard with (C7W) GVWR, 11,400 lbs. (5171 kg) only)
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, hydroformed
• GVWR, 11,400 lbs. (5171 kg), includes dual rear wheels
• Pickup bed, Wideside box (May be substituted with (ZW9) Pickup bed, delete. - Not available with TC35903 Models)
• Rear axle, 4.10 ratio
• Recovery hooks, front, frame-mounted (Standard with 4WD Models)
• Steering, power
• Suspension Package, Handling/Trailering, heavy-duty, includes 36mm piston monotube shocks
• Suspension, front, independent torsion bar, and stabilizer bar
• Suspension, rear, 3-stage springs
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Tires, LT215/85R16E, all-season, blackwall (Requires TK35943 or TK35953 Models and (C7W) GVWR, 11,400 lbs. - Includes 7 tires with (E63) Pickup bed, Wideside box. - Includes 6 tires with (ZW9) Pickup bed, delete. - Not available with (C6Y) GVWR, 9600 lbs., (GEC) GVWR, 9800 lbs., or (C4M) GVWR, 9900 lbs. (4491 kg))
• Tools, mechanical jack and wheel wrench located in back of cab
• Wheels, 6 - 16" x 6.5" (40.6 cm x 16.5 cm) 8-lug steel, with bright metal rings and chrome center caps and steel spare (Requires and only available with (C7W) GVWR, 11,400 lbs. (5171 kg) (dual rear wheel))

• Air bags, frontal, driver and right front passenger (Regular and Extended Cab Models includes passenger side deactivation switch. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information)
• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime running lamps, includes automatic exterior lamp control

SOUND SYSTEM FEATURE, XM SATELLITE RADIO

• features 67 channels of 100% commercial-free music included in its over 150 channels of the best in music
• news
• sports
• talk
• comedy
• XM Instant Traffic and Weather
• and more. Digital quality sound with coast-to-coast signal coverage. Three trial months-no obligation

SEAT TRIM, LEATHER

• (STD)

PICKUP BED, WIDESIDE BOX

• (STD)

BATTERY, HEAVY-DUTY DUAL, 770 COLD-CRANKING AMPS

• includes rundown protection and retained accessory power

LICENSE PLATE BRACKET, FRONT

• (will be forced on orders with ship-to states that require a front license plate)

GVWR, 11,400 LBS. (5171 KG)

• includes dual rear wheels (STD)

ONSTAR, ONE-YEAR OF SAFE AND SOUND SERVICE

• Includes Automatic Notification of Air Bag Deployment
• Emergency Services
• Stolen Vehicle Location Assistance
• Remote Door Unlock
• OnStar Vehicle Diagnostics
• Roadside Assistance
• Accident Assist and Remote Horn and Lights. Also featuring Hands-Free Calling

SLT PREFERRED EQUIPMENT GROUP

• includes standard equipment

ONSTAR PLUS PACKAGE

• includes (U2K) Sound system feature
• XM Satellite Radio
• (UE1) OnStar
• and (UK3) Sound system feature
• steering wheel mounted radio controls

TRAILERING EQUIPMENT, HEAVY-DUTY

• includes trailering hitch platform
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• instrument panel jumper wiring harness for electric trailer brake controller
• and 1-way sealed connector for center high-mounted stop/brake lamp. Also includes (K47) Air cleaner
• high capacity

AIR CLEANER, HIGH-CAPACITY

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8
• (LBZ) Engine
• Duramax 6600 Turbo Diesel V8
• (Z82) Trailering equipment
• heavy-duty or (VYU) Snow Plow Prep Package)

SUNROOF, POWER, TILT-SLIDING, ELECTRIC WITH EXPRESS-OPEN AND WIND DEFLECTOR

• includes (UG1) Universal Home Remote

MIRRORS, VERTICAL CAMPER, OUTSIDE REARVIEW, POWER ADJUSTABLE GLASS, HEATED, MANUAL FOLDING AND EXTENDING

• includes turn signal indicators and lower convex spotter glass (convex glass is not heated)

SKID PLATE PACKAGE

• includes aluminum front underbody shield starting behind front bumper and running to 1st cross-member
• protecting front underbody
• oil pan
• differential case and transfer case
• frame-mounted shields

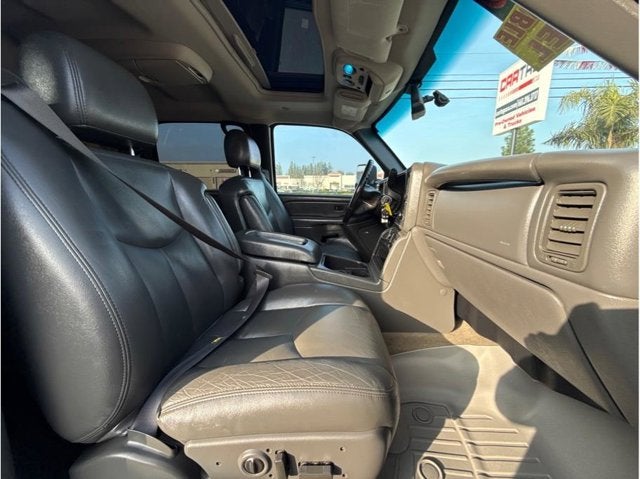

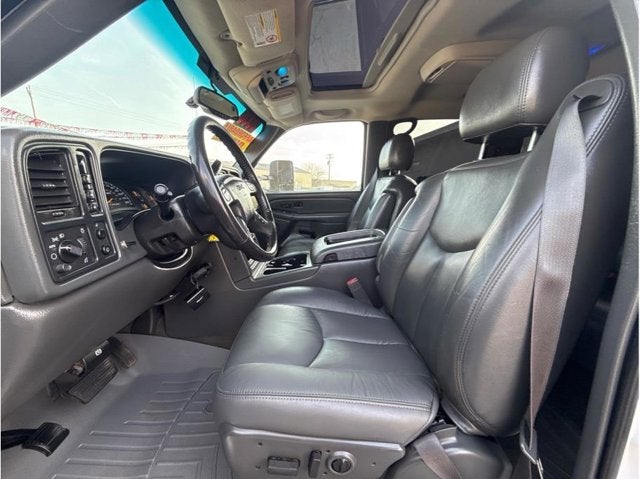

SEATS, FRONT POWER RECLINING FULL-FEATURE BUCKETS

• includes adjustable head restraints
• floor console
• driver and passenger power lumbar
• driver and front passenger 10-way power adjustable
• dual inboard armrests
• heated driver and passenger cushion and back
• 2-position driver-side memory and storage pockets (STD)

TIRE, SPARE LT215/85R16E, ON-/OFF-ROAD, BLACKWALL

• located at rear underbody of vehicle

HEAVY-DUTY POWER PACKAGE

• includes (LBZ) Engine
• Duramax 6600 Turbo Diesel V8
• (MW7) Transmission
• Allison 1000 6-speed automatic and (G80) Differential
• locking
• heavy-duty
• rear

ENGINE, DURAMAX 6600 TURBO DIESEL V8

• (360 HP [268.0 kW] @ 3200 rpm
• 650 lb.-ft. [881.0 N-m] @ 1600 rpm) Includes (TQ3) Battery
• heavy-duty dual
• 770 cold-cranking amps
• (KG3) Alternator
• 145 amps
• (K47) Air cleaner
• high capacity and (K05) Engine block heater.)

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WITH OVERDRIVE AND ELECTRONIC ENGINE GRADE BRAKING

• includes tow/haul mode selector and (KNP) Cooling
• external transmission oil cooler

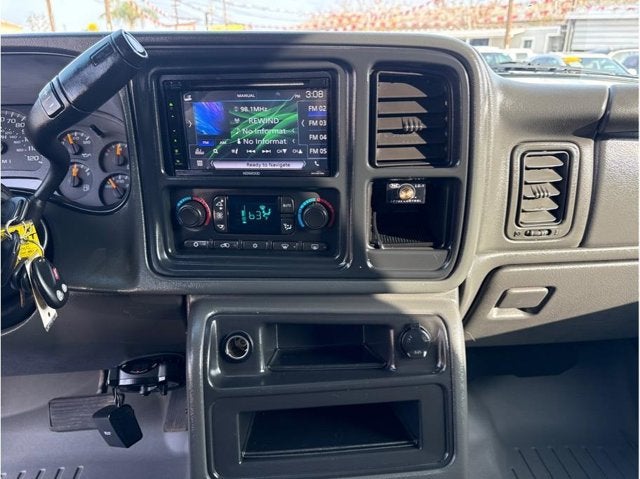

SOUND SYSTEM, ETR AM/FM STEREO WITH 6-DISC CD CHANGER

• includes seek-and-scan
• digital clock
• auto-tone control
• speed-compensated volume
• TheftLock
• Radio Data System (RDS)
• and Bose speaker system (includes 6-speakers
• Bose amplifier and Bose Subwoofer) (STD)

ENGINE BLOCK HEATER

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8 or (LBZ) Engine
• Duramax 6600 Turbo Diesel V8)

PAINT, SOLID

• (STD)

ENTERTAINMENT SYSTEM, REAR SEAT

• includes DVD player
• LCD display and 2 wireless headphones

TRAILERING WIRING PROVISIONS, FOR CAMPER, 5TH WHEEL AND GOOSENECK TRAILER

• includes additional 8-way wiring harness routed to front of Pickup box

• XM SATELLITE RADIO (subscription required)
• SEAT TRIM LEATHER (STD)
• PICKUP BED WIDESIDE BOX (STD)
• BATTERY HEAVY-DUTY DUAL 770 COLD-CRANKING AMPS includes rundown protection and retained accessory power
• LICENSE PLATE BRACKET FRONT (will be forced on orders with ship-to states that require a front license plate)
• GVWR 11 400 LBS. (5171 KG) includes dual rear wheels (STD)
• DIFFERENTIAL AUTOMATIC LOCKING HEAVY-DUTY REAR
• OnStar Equipped (subscription required)
• REAR AXLE 3.73 RATIO
• SLT PREFERRED EQUIPMENT GROUP includes standard equipment
• TIRES LT215/85R16E ON-/OFF-ROAD BLACKWALL
• CUSTOMER DIALOGUE NETWORK
• ONSTAR PLUS PACKAGE includes (U2K) Sound system feature XM Satellite Radio (UE1) OnStar and (UK3) Sound system feature steering wheel mounted radio controls
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector instrument panel jumper wiring harness for electric trailer brake controller and 1-way sealed connector for center high-mounted stop/brake lamp. Also includes (K47) Air cleaner high capacity
• AIR CLEANER HIGH-CAPACITY (Included with (LLY) Engine Duramax 6600 Turbo Diesel V8 (LBZ) Engine Duramax 6600 Turbo Diesel V8 (Z82) Trailering equipment heavy-duty or (VYU) Snow Plow Prep Package)
• CONSOLE OVERHEAD DELUXE
• SUNROOF POWER TILT-SLIDING ELECTRIC WITH EXPRESS-OPEN AND WIND DEFLECTOR includes (UG1) Universal Home Remote
• MIRRORS VERTICAL CAMPER OUTSIDE REARVIEW POWER ADJUSTABLE GLASS HEATED MANUAL FOLDING AND EXTENDING includes turn signal indicators and lower convex spotter glass (convex glass is not heated)
• SPARE TIRE LOCK
• SKID PLATE PACKAGE includes aluminum front underbody shield starting behind front bumper and running to 1st cross-member protecting front underbody oil pan differential case and transfer case frame-mounted shields
• SEATS FRONT POWER RECLINING FULL-FEATURE BUCKETS includes adjustable head restraints floor console driver and passenger power lumbar driver and front passenger 10-way power adjustable dual inboard armrests heated driver and passenger cushion and back 2-position driver-side memory and storage pockets (STD)
• TIRE SPARE LT215/85R16E ON-/OFF-ROAD BLACKWALL located at rear underbody of vehicle
• HEAVY-DUTY POWER PACKAGE includes (LBZ) Engine Duramax 6600 Turbo Diesel V8 (MW7) Transmission Allison 1000 6-speed automatic and (G80) Differential locking heavy-duty rear
• ENGINE DURAMAX 6600 TURBO DIESEL V8 (360 HP [268.0 kW] @ 3200 rpm 650 lb.-ft. [881.0 N-m] @ 1600 rpm) Includes (TQ3) Battery heavy-duty dual 770 cold-cranking amps (KG3) Alternator 145 amps (K47) Air cleaner high capacity and (K05) Engine block heater.)
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED WITH OVERDRIVE AND ELECTRONIC ENGINE GRADE BRAKING includes tow/haul mode selector and (KNP) Cooling external transmission oil cooler
• SOUND SYSTEM ETR AM/FM STEREO WITH 6-DISC CD CHANGER includes seek-and-scan digital clock auto-tone control speed-compensated volume TheftLock Radio Data System (RDS) and Bose speaker system (includes 6-speakers Bose amplifier and Bose Subwoofer) (STD)
• ENGINE BLOCK HEATER (Included with (LLY) Engine Duramax 6600 Turbo Diesel V8 or (LBZ) Engine Duramax 6600 Turbo Diesel V8)
• COOLING EXTERNAL TRANSMISSION OIL COOLER AUXILIARY HEAVY-DUTY AIR-TO-OIL
• COVERS RADIATOR GRILLE AND FRONT BUMPER OPENINGS
• PAINT SOLID (STD)
• ENTERTAINMENT SYSTEM REAR SEAT includes DVD player LCD display and 2 wireless headphones
• TRAILERING WIRING PROVISIONS FOR CAMPER 5TH WHEEL AND GOOSENECK TRAILER includes additional 8-way wiring harness routed to front of Pickup box
• Four Wheel Drive
• Four Wheel Drive
• Tow Hooks
• Dual Rear Wheels
• Dual Rear Wheels
• Dual Rear Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Steel Wheels
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Automatic Headlights
• Daytime Running Lights
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• Leather Seats
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Rear Bench Seat
• Power Driver Seat
• Power Passenger Seat
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Immobilizer
• Trip Computer
• Rear Defrost
• Cruise Control
• Power Door Locks
• Power Windows
• Security System
• Keyless Entry
• Power Door Locks
• Climate Control
• Multi-Zone A/C
• A/C
• AM/FM Stereo
• CD Changer
• CD Player
• Premium Sound System
• Premium Sound System
• Rear Seat Audio Controls
• Power Outlet
• Steering Wheel Audio Controls
• Power Outlet
• Auto-Dimming Rearview Mirror
• Front Reading Lamps
• Passenger Vanity Mirror
• Front Reading Lamps
• ABS
• 4-Wheel Disc Brakes
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Daytime Running Lights
• Automatic Headlights

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Total Cooling System Capacity (qts): 16.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 8550
• Curb Weight - Front (lbs): 3475
• Curb Weight - Rear (lbs): 2901
• Gross Vehicle Weight Rating Cap (lbs): 11400
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 7500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 750
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1380
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2300
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 3-Stage Springs
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: XEF
• Front Tire Order Code: XEC
• Rear Tire Order Code: XEF
• Rear Tire Order Code: XEC
• Spare Tire Order Code: XEF
• Spare Tire Order Code: XEC
• Front Tire Size: LT215/85R16
• Rear Tire Size: LT215/85R16
• Spare Tire Size: LT215/85R16
• Front Tire Capacity (lbs): 2430
• Rear Tire Capacity (lbs): 2150
• Spare Tire Capacity (lbs): 2430
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 55.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 167.0
• Length, Overall w/o rear bumper (in): 258.5
• Width, Max w/o mirrors (in): 96.1
• Height, Overall (in): 77.3
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.1
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.6
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 73.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary
• Vehicle Name: GMC Sierra 3500
• Body Style: Crew Cab 8' Wideside
• Body Code: E63
