• (4) air registers w/positive shut-off
• Ashtray & cigar lighter
• Auxiliary pwr point
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Color-keyed cloth headliner
• Color-keyed scuff plates
• Driver & passenger grab handles
• Dual color-keyed coat hooks
• Front door operated dome lamp w/time delay off & IP switch
• Glove box
• Instrument panel mounted dual cupholders, storage bin & trash bag hook

• (2) front tow hooks
• 115-amp HD alternator
• 2-speed transfer case w/manual locking front hubs
• 2-ton mechanical jack
• 3.73 axle ratio
• 4-wheel anti-lock braking system (ABS)
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• Front stabilizer bar
• Full-size spare tire w/lock
• HD shock absorbers
• Mono-beam front axle w/coil spring suspension
• Pwr 4-wheel disc brakes
• Pwr steering
• Trailer tow pkg-inc: 7-wire harness w/relays, 7/4 pin combination connector, trailer brake wiring kit w/o controller

• 4-wheel anti-lock braking system (ABS)
• BlockerBeam frontal crash protection system
• Driver & front passenger airbags w/passenger-side deactivation switch
• Front/rear child seat tethers (on all passenger seats)

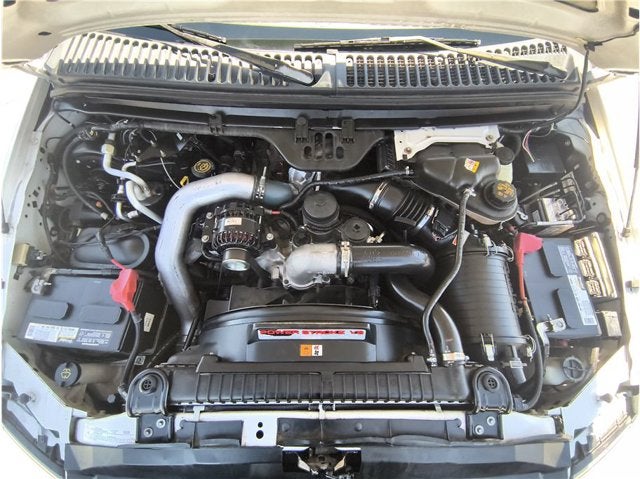

6.0L DI V8 TURBO-DIESEL "POWER STROKE" ENGINE

• 110-amp HD alternator
• dual 750 CCA battery
• turbo boost gauge
• air filter minder

• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Power Steering
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Third Passenger Door
• Fourth Passenger Door
• Woodgrain Interior Trim

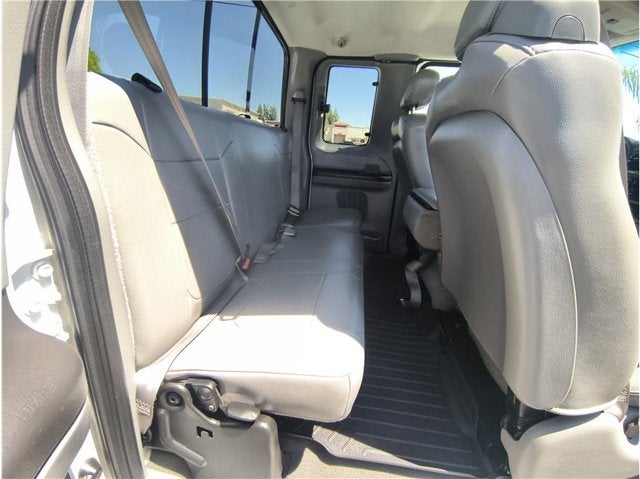

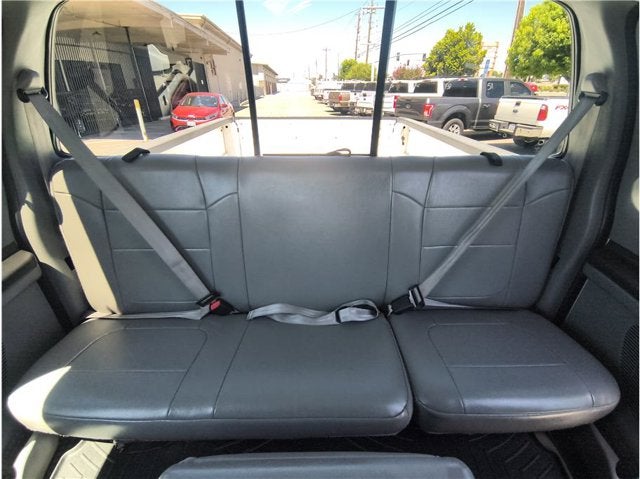

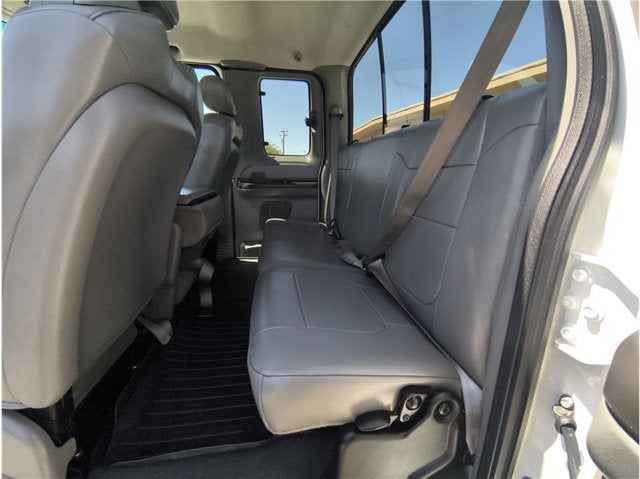

• Rear Bench Seat
• Power Door Locks
• AM/FM Stereo
• Power Outlet
• Passenger Vanity Mirror
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 110
• Maximum Alternator Capacity (amps): HD 115
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6100
• Curb Weight - Front (lbs): 4244
• Curb Weight - Front (lbs): 3606
• Curb Weight - Rear (lbs): 2636
• Curb Weight - Rear (lbs): 2601
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1240
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 820
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 820
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4000
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Dana Monobeam
• Axle Type - Rear: Ford Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47

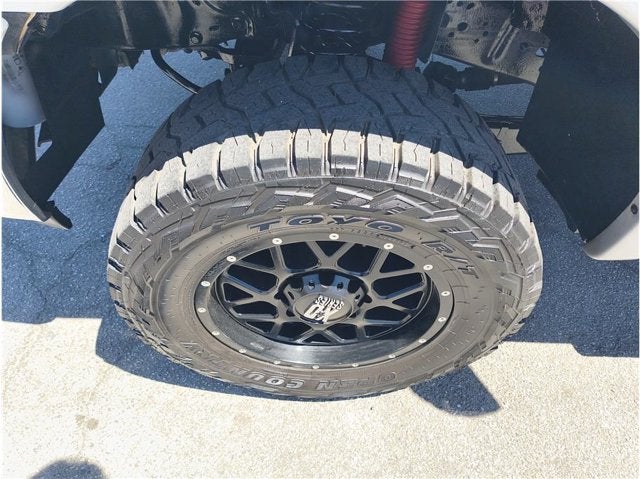

• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 664
• Revolutions/Mile @ 45 mph - Rear: 664
• Revolutions/Mile @ 45 mph - Spare: 664
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.5
• Turning Diameter - Wall to Wall (ft): 49.4
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 29
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 141.8
• Length, Overall w/o rear bumper (in): 231.2
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 79.5
• Overhang, Front (in): 37.2
• Overhang, Rear w/o bumper (in): 52.2
• Front Bumper to Back of Cab (in): 139.1
• Cab to Axle (in): 40.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.5

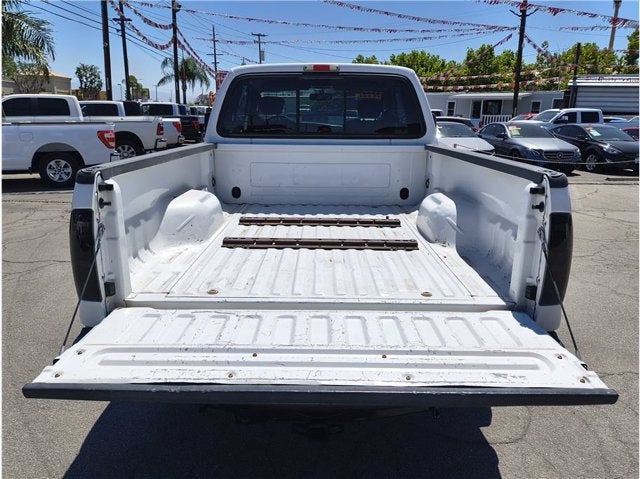

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.4
• Cargo Box Width @ Top, Rear (in): 63.5
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 64.8
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.4
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Second Head Room (in): 38.2
• Second Leg Room (in): 32.2
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.3
• Summary

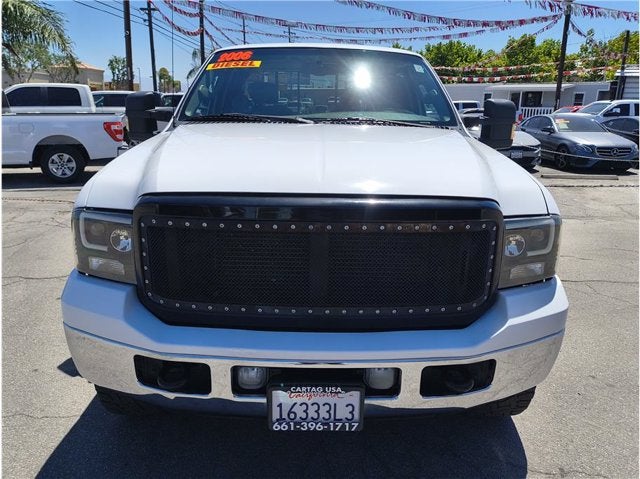

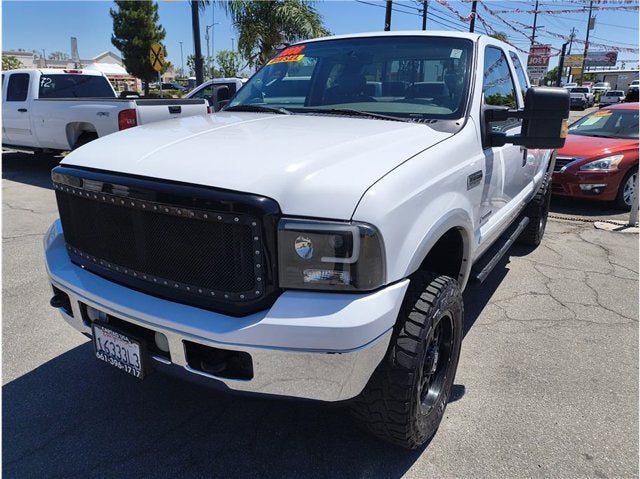

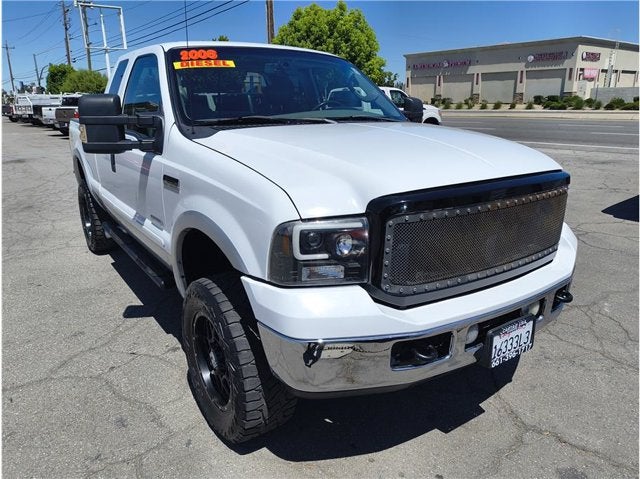

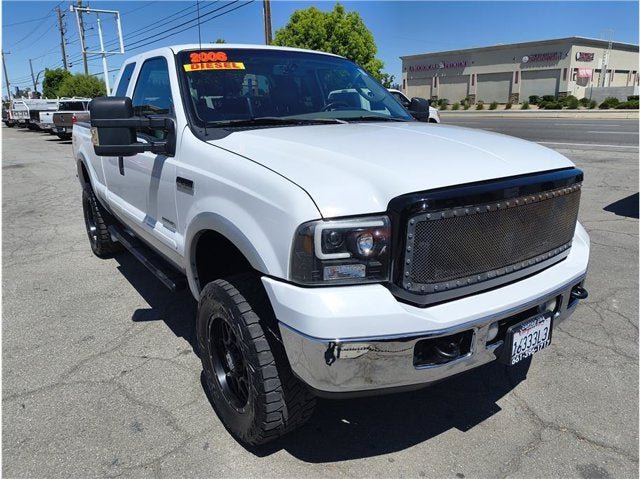

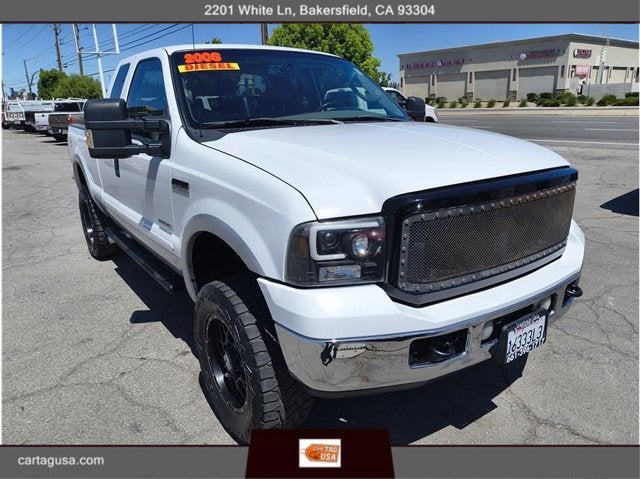

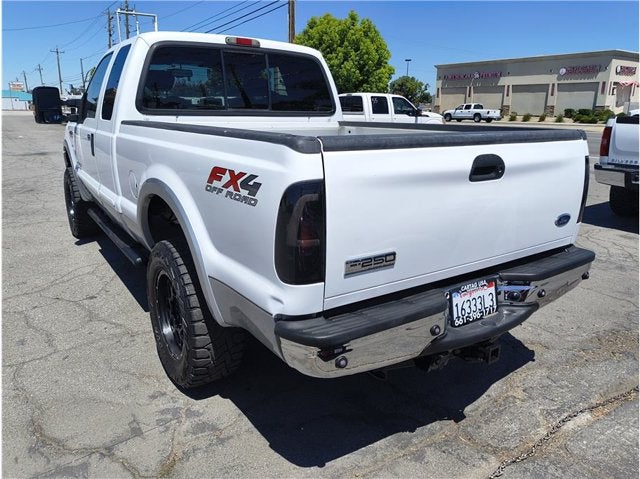

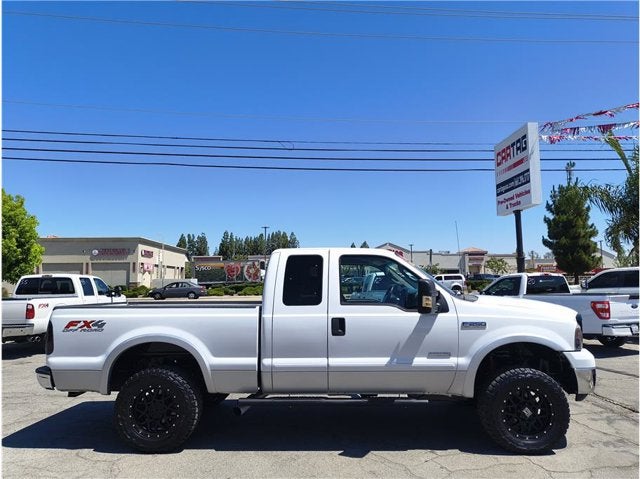

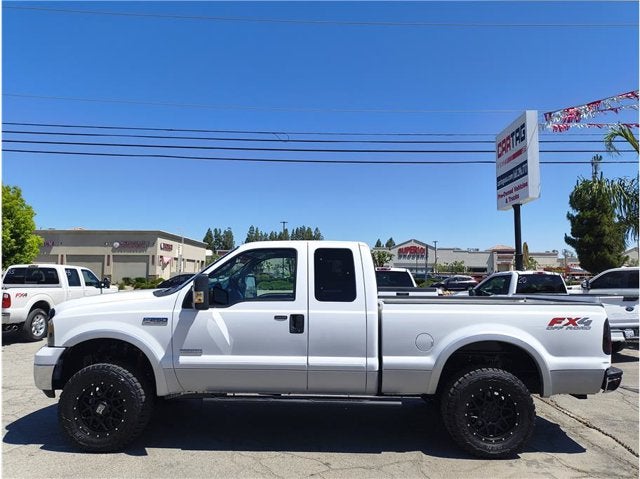

• Vehicle Name: Ford Super Duty F-250
• Body Style: Supercab 6-3/4'
• Body Code: 142" WB
