• Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended Cab Models.)
• Cigarette lighter, on instrument panel
• Coat hook, driver side (Also includes passenger side coat hook on Extended Cab models.)
• Console, overhead mini, includes map lights
• Cruise control, electronic with set and resume speed, includes telltale in instrument panel cluster
• Cupholders, front (Also includes rear cupholders on Extended Cab models.)
• Defogger, rear-window, electric
• Door locks, power
• Headliner, Shale-colored cloth, with matching retainer moldings
• Keyless entry, remote, includes 2 transmitters, panic button and content theft alarm
• Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry
• Mirror, inside rearview, electrochromic (light-sensitive auto dimming), 8-point compass and outside temperature indicator
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Seat trim, Custom Cloth
• Seats, front 40/20/40 split-bench, 3-passenger, driver and passenger manual reclining, center fold-down armrest with storage, adjustable outboard head restraints and storage pockets on Extended Cab Models (Not available with (UC6) Sound system, ETR AM/FM stereo with 6-disc CD changer.)
• Steering wheel, leather-wrapped rim, Black, includes theft-deterrent locking feature
• Theft-deterrent system, PASSlock II
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder, turn signal on
• Windows, power, includes driver and passenger express-down

• Alternator, 105 amps
• Body, Chassis Cab
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, hydroformed
• Fuel capacity, approximate, 50 gallon
• GVWR, 11,400 lbs. (5171 kg) (Standard with 2WD Models only.)
• Rear axle, 66" (167.6 cm) wide
• Rear wheel drive
• Steering, power
• Suspension Package, Handling/Trailering, heavy-duty, includes 36mm piston monotube shocks
• Suspension, front, independent torsion bar, and stabilizer bar
• Suspension, rear, 3-stage springs
• Tire carrier, outside spare, winch-type mounted under frame at rear
• Tools, mechanical jack and wheel wrench located in back of cab

• Air bags, frontal, driver and right front passenger, includes passenger side deactivation switch (Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owners Manual for more safety information.)
• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime running lamps, includes automatic exterior lamp control

PAINT, SOLID

• (STD)

BODY, CHASSIS CAB

• (STD)

ENGINE BLOCK HEATER

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8.)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND PASSENGER MANUAL RECLINING

• center fold-down armrest with storage
• adjustable outboard head restraints and storage pockets on Extended Cab Models (STD)

REAR AXLE, 3.73 RATIO

• (Refer to Engine/Axle chart for availability.)

AIR CLEANER, HIGH-CAPACITY

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8 or (VYU) Snow Plow Prep Package.)

SEAT TRIM, CUSTOM CLOTH

• (STD)

TRANSMISSION, ALLISON 1000 5-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WITH OVERDRIVE AND ELECTRONIC ENGINE GRADE BRAKING

• includes tow/haul mode selector and (KNP) Cooling
• external transmission oil cooler

FUEL TANK DELETE, REAR

• (deletes 18 gallons [68.1L] rear fuel tank
• leaves 32 gallons [121.1L] front fuel tank)

GVWR, 11,400 LBS. (5171 kg)

• (STD)

FLOOR COVERING, GRAPHITE-COLORED RUBBERIZED VINYL

• *Affects Color Availability*

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• includes 36mm piston monotube shocks (STD)

TIRES, LT215/85R16D, ALL-SEASON, BLACKWALL

• (STD)

SOUND SYSTEM, ETR AM/FM STEREO WITH CD PLAYER

• includes seek-and-scan
• digital clock
• auto-tone control
• speed-compensated volume and Radio Data System (RDS) (STD)

SLE PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

MIRRORS, OUTSIDE REARVIEW, POWER, HEATED, CAMPER-STYLE

• includes power extending arms and turn signal in glass

HEAVY-DUTY POWER PACKAGE

• includes (LLY) Engine
• Duramax 6600 Turbo Diesel V8
• (M74) Transmission
• Allison 1000 5-speed automatic and (G80) Differential
• automatic locking
• heavy-duty
• rear

BATTERY, HEAVY-DUTY DUAL, 770 COLD-CRANKING AMPS

• includes rundown protection and retained accessory power

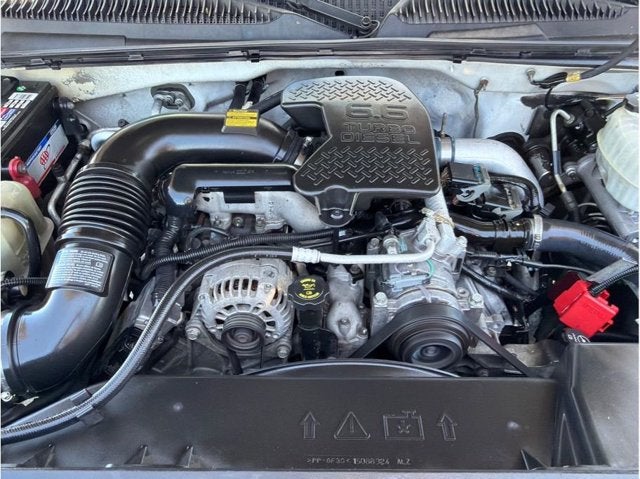

ENGINE, DURAMAX 6600 TURBO DIESEL V8

• (with Manual Transmissions 300 HP [223.8 kW] @ 3000 rpm
• 520 lb.-ft. [702.0 N-m] @ 1600 rpm) (with Automatic Transmissions 310 HP [231.2 kW] @ 3000 rpm
• 605 lb.-ft. [816.8 N-m] @ 1600 rpm) (Includes (TQ3) Battery
• heavy-duty dual
• 770 cold-cranking amps
• (K47) Air cleaner
• high capacity and (K05) Engine block heater.)

SEAT ADJUSTER, POWER, DRIVER 6-WAY

• (Included with (A95) Seats
• front reclining buckets. Included with (__2) Seat trim
• leather seating surfaces.)

• LICENSE PLATE BRACKET FRONT
• PAINT SOLID (STD)
• BODY CHASSIS CAB (STD)
• COOLING EXTERNAL TRANSMISSION OIL COOLER AUXILIARY HEAVY-DUTY AIR-TO-OIL
• ENGINE BLOCK HEATER (Included with (LLY) Engine Duramax 6600 Turbo Diesel V8.)
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND PASSENGER MANUAL RECLINING center fold-down armrest with storage adjustable outboard head restraints and storage pockets on Extended Cab Models (STD)
• REAR AXLE 3.73 RATIO (Refer to Engine/Axle chart for availability.)
• DIFFERENTIAL AUTOMATIC LOCKING HEAVY-DUTY REAR
• AIR CLEANER HIGH-CAPACITY (Included with (LLY) Engine Duramax 6600 Turbo Diesel V8 or (VYU) Snow Plow Prep Package.)
• SEAT TRIM CUSTOM CLOTH (STD)
• TRANSMISSION ALLISON 1000 5-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED WITH OVERDRIVE AND ELECTRONIC ENGINE GRADE BRAKING includes tow/haul mode selector and (KNP) Cooling external transmission oil cooler
• FUEL TANK DELETE REAR (deletes 18 gallons [68.1L] rear fuel tank leaves 32 gallons [121.1L] front fuel tank)
• GVWR 11 400 LBS. (5171 kg) (STD)
• FLOOR COVERING GRAPHITE-COLORED RUBBERIZED VINYL *Affects Color Availability*
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 36mm piston monotube shocks (STD)
• TIRES LT215/85R16D ALL-SEASON BLACKWALL (STD)
• SOUND SYSTEM ETR AM/FM STEREO WITH CD PLAYER includes seek-and-scan digital clock auto-tone control speed-compensated volume and Radio Data System (RDS) (STD)
• SLE PREFERRED EQUIPMENT GROUP includes Standard Equipment
• MIRRORS OUTSIDE REARVIEW POWER HEATED CAMPER-STYLE includes power extending arms and turn signal in glass
• HEAVY-DUTY POWER PACKAGE includes (LLY) Engine Duramax 6600 Turbo Diesel V8 (M74) Transmission Allison 1000 5-speed automatic and (G80) Differential automatic locking heavy-duty rear
• BATTERY HEAVY-DUTY DUAL 770 COLD-CRANKING AMPS includes rundown protection and retained accessory power
• ENGINE DURAMAX 6600 TURBO DIESEL V8 (with Manual Transmissions 300 HP [223.8 kW] @ 3000 rpm 520 lb.-ft. [702.0 N-m] @ 1600 rpm) (with Automatic Transmissions 310 HP [231.2 kW] @ 3000 rpm 605 lb.-ft. [816.8 N-m] @ 1600 rpm) (Includes (TQ3) Battery heavy-duty dual 770 cold-cranking amps (K47) Air cleaner high capacity and (K05) Engine block heater.)
• SEAT ADJUSTER POWER DRIVER 6-WAY (Included with (A95) Seats front reclining buckets. Included with (__2) Seat trim leather seating surfaces.)
• Rear Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Steel Wheels
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Automatic Headlights
• Fog Lamps
• Daytime Running Lights
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• Cloth Seats
• Split Bench Seat

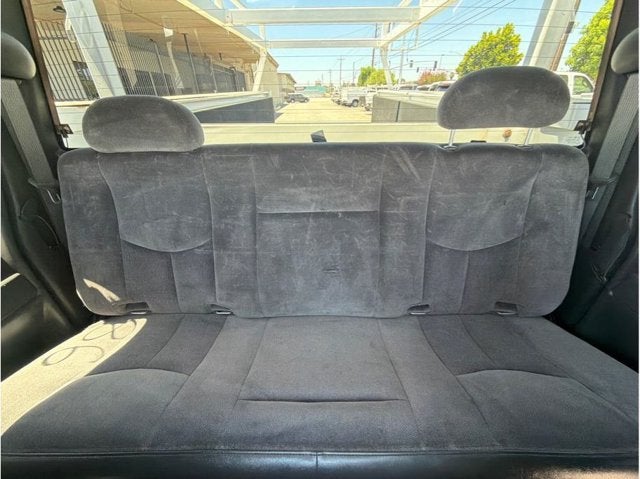

• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• Immobilizer
• Security System
• Keyless Entry
• Power Door Locks
• Multi-Zone A/C
• A/C
• Rear Defrost
• AM/FM Stereo
• CD Player
• Power Outlet
• Auto-Dimming Rearview Mirror
• Front Reading Lamps
• Passenger Vanity Mirror
• Front Reading Lamps
• ABS
• 4-Wheel Disc Brakes
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Daytime Running Lights
• Automatic Headlights

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4670
• Gross Axle Wt Rating - Rear (lbs): 8550
• Curb Weight - Front (lbs): 3226
• Curb Weight - Rear (lbs): 2474
• Gross Vehicle Weight Rating Cap (lbs): 11,400
• Gross Combined Wt Rating (lbs): 22000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): N/A
• Dead Weight Hitch - Max Tongue Wt. (lbs): N/A
• Wt Distributing Hitch - Max Trailer Wt. (lbs): N/A
• Wt Distributing Hitch - Max Tongue Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Indep Torsion Bar
• Suspension Type - Rear: 3-Stage Spring
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Front: Independent
• Axle Type - Rear: Full Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: XYK
• Rear Tire Order Code: XYK
• Front Tire Size: LT215/85R16D
• Rear Tire Size: LT215/85R16D
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 2150
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24.0
• Steering Ratio (:1), At Lock: 3.14
• Turning Diameter - Curb to Curb (ft): 51.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32
• Aux Fuel Tank Capacity, Approx (gal): 18
• Fuel Tank Location: Inboard LH Frame
• Aux Fuel Tank Location: Rear
• Exterior Dimensions
• Wheelbase (in): 161.5
• Length, Overall w/o rear bumper (in): 249.5
• Width, Max w/o mirrors (in): 86.0
• Height, Overall (in): 76.0
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 51.0
• Front Bumper to Back of Cab (in): 138.1
• Cab to Axle (in): 60.4
• Cab to End of Frame (in): 111.4
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.7
• Ground Clearance, Rear (in): 7.6
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.7
• Front Hip Room (in): 61.5
• Second Head Room (in): 38.4
• Second Leg Room (in): 38.4
• Second Shoulder Room (in): 66.4
• Second Hip Room (in): 61.5
• Summary
• Vehicle Name: GMC Sierra 3500
• Body Style: Ext Cab 161.5" Wheelbase
• Body Code: ZW9
