• (4) air registers w/positive shut-off
• 11.5" day/night mirror
• Auxiliary pwr point

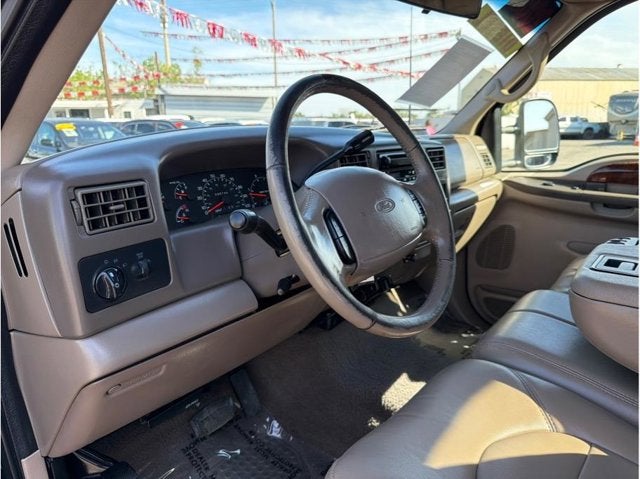

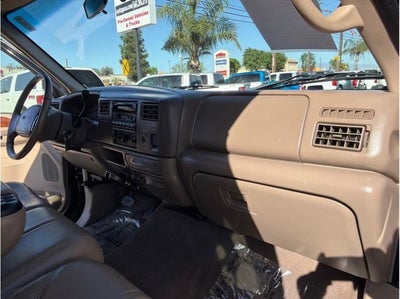

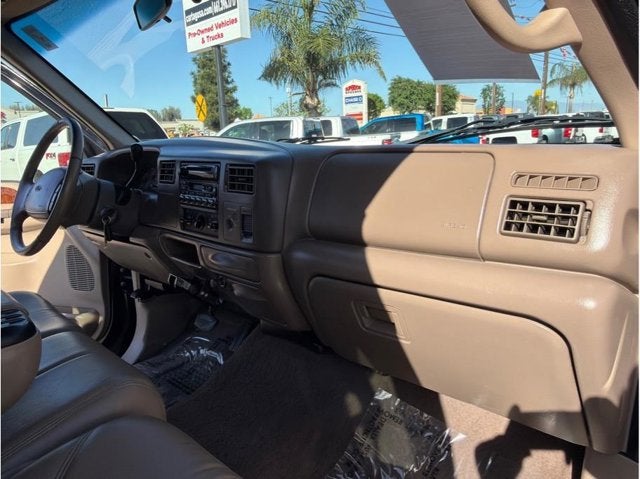

• Color-keyed instrument panel w/dual cupholders/glove box/ashtray/cigar lighter
• Color-keyed molded cloth headliner
• Color-keyed scuff plates
• Dual color-keyed coat hooks
• Front door operated dome lamp w/time delay off
• Front passenger assist handle
• Gray fabric back panel cover
• Inside hood release

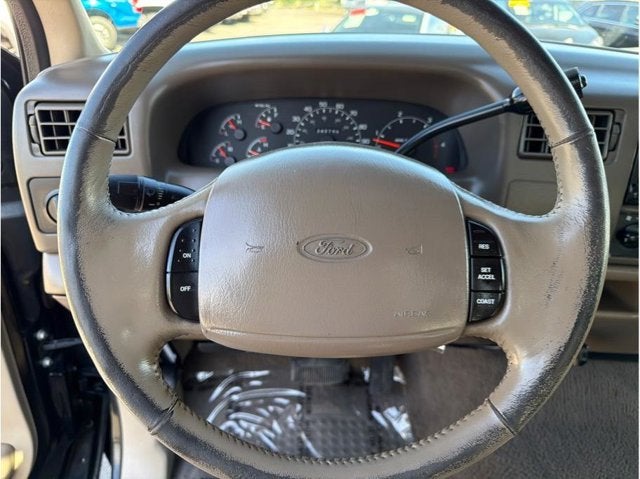

• Instrumentation-inc: tachometer, trip odometer, voltmeter, oil pressure/ coolant temp/fuel gauges, indicator lights

• (2) front tow hooks
• (7) LT215/85R16E all-season SBR BSW tires
• 11,200# GVWR (4700 front/8250 rear), springs (4700 front/8250 rear), axles (4700 front/10,000 rear)
• 130 amp alternator
• 158" WB
• 3.73 axle ratio
• 38 gallon fuel tank
• 78 amp/hr (750 CCA) maintenance-free battery
• 8' pickup box w/tie-down hooks & partitionable/stackable storage
• Front/rear stabilizer bar
• Full-size spare tire w/steel wheel, lock, underframe crank carrier
• HD gas shock absorbers
• Pwr 4-wheel disc brakes w/4-corner anti-lock system
• Pwr steering
• Rear wheel drive
• Trailer tow pkg-inc: 7-wire harness, trailer brake wiring kit
• Twin I-beam front axle

• 4-corner anti-lock braking system
• Color-keyed safety belts w/front seat adjustable D-rings
• Driver & front passenger airbags w/passenger-side deactivation switch
• Dual-note horn

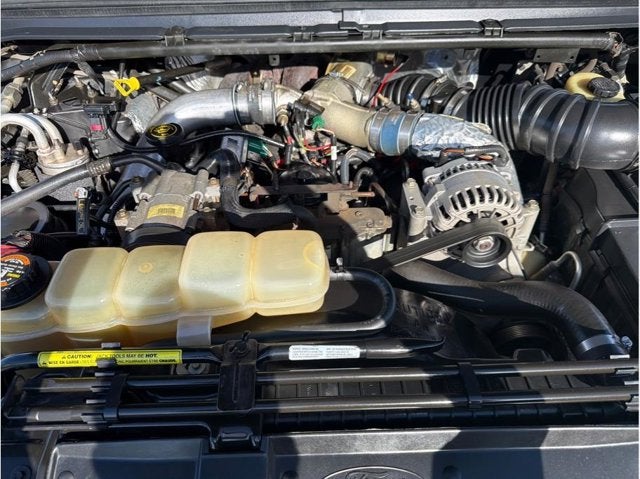

7.3L (444) DI V8 TURBO-DIESEL ENGINE

• 115 amp alt
• dual 78 amp/hr batteries
• engine block heater
• exhaust back pressure valve

• Rear Wheel Drive
• Tow Hooks
• Dual Rear Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Steel Wheels
• Power Steering
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Third Passenger Door
• Fourth Passenger Door

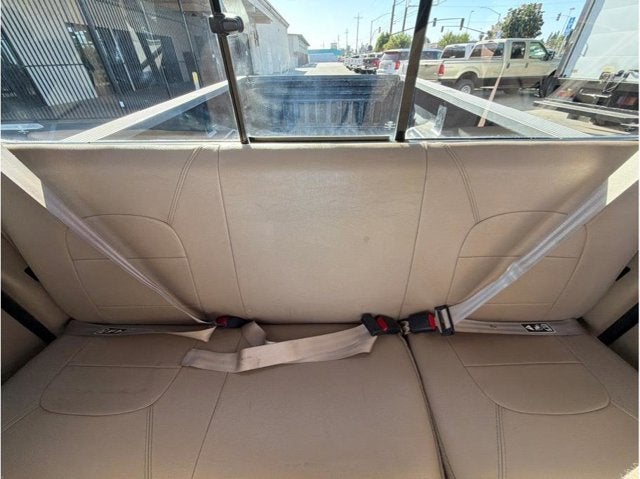

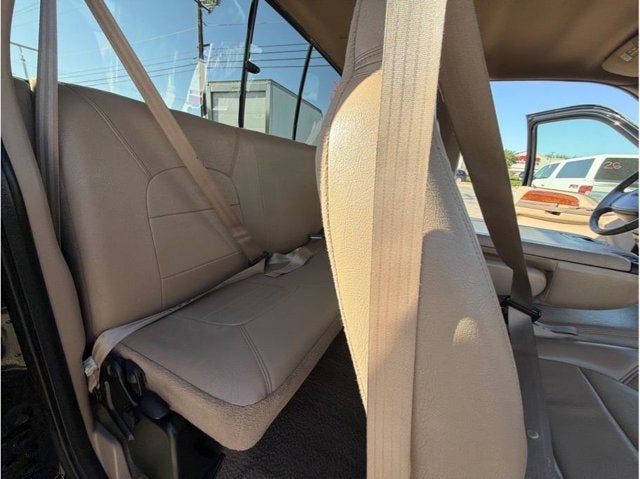

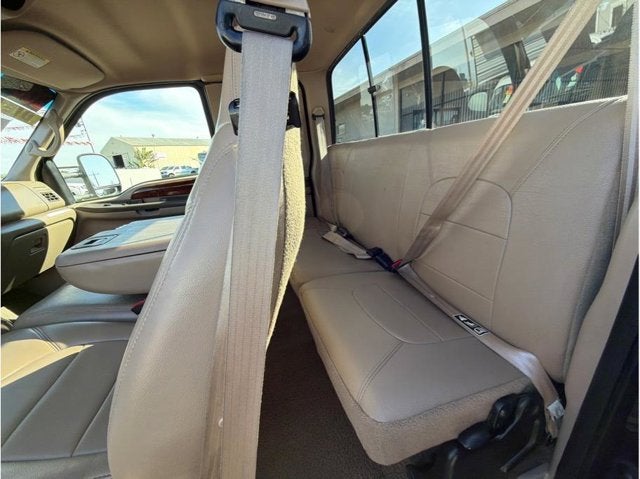

• Rear Bench Seat
• Power Door Locks

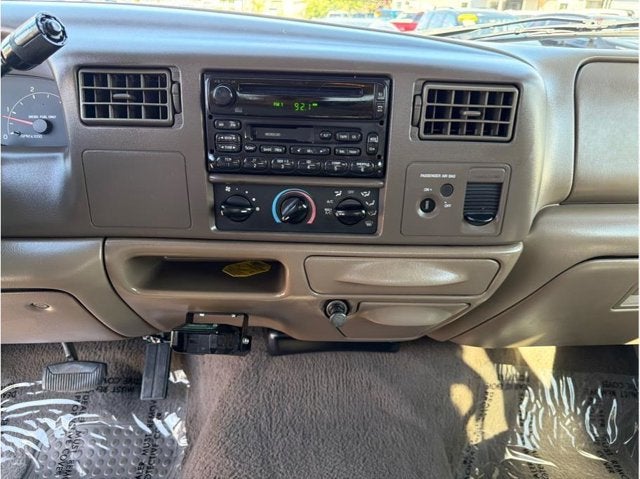

• AM/FM Stereo
• Power Outlet
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 20.0
• Total Cooling System Capacity (qts): 26.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4250
• Gross Axle Wt Rating - Front (lbs): 3650
• Gross Axle Wt Rating - Rear (lbs): 8250
• Curb Weight - Front (lbs): 3181
• Curb Weight - Rear (lbs): 2518
• Gross Vehicle Weight Rating Cap (lbs): 11,200
• Gross Combined Wt Rating (lbs): 20,000
• Gross Combined Wt Rating (lbs): 13,500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3525
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4250
• Spring Capacity - Front (lbs): 3650
• Spring Capacity - Rear (lbs): 8250
• Axle Type - Front: Ford Twin-I-Beam
• Axle Type - Rear: Ford Full-Floating
• Axle Capacity - Front (lbs): 4850
• Axle Capacity - Rear (lbs): 9750
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 12.83 x - TBD -
• Tires
• Front Tire Order Code: T31
• Rear Tire Order Code: T31
• Front Tire Size: LT215/85R16E
• Rear Tire Size: LT215/85R16E
• Spare Tire Size: LT215/85R16E
• Front Tire Capacity (lbs): 2470
• Rear Tire Capacity (lbs): 2470
• Spare Tire Capacity (lbs): 2470
• Revolutions/Mile @ 45 mph - Front: 682
• Revolutions/Mile @ 45 mph - Rear: 682
• Revolutions/Mile @ 45 mph - Spare: 682
• Wheels
• Front Wheel Size (in): 16 x 6.0
• Rear Wheel Size (in): 16 x 6.0
• Spare Wheel Size (in): 16 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.2
• Turning Diameter - Wall to Wall (ft): 57.0
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 38
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 158.0
• Length, Overall w/o rear bumper (in): 243.2
• Width, Max w/o mirrors (in): 95.5
• Height, Overall (in): 76.3
• Overhang, Front (in): 37.4
• Overhang, Rear w/o bumper (in): 47.8
• Front Bumper to Back of Cab (in): 139.2
• Cab to Axle (in): 56.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.6
• Cargo Box Width @ Top, Rear (in): 64.6
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 65.0
• Cargo Volume (ft³): 77.7
• Ext'd Cab Cargo Volume (ft³): 43.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.4
• Front Leg Room (in): 40.7
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Second Head Room (in): 38.5
• Second Leg Room (in): 32.4
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.3
• Summary

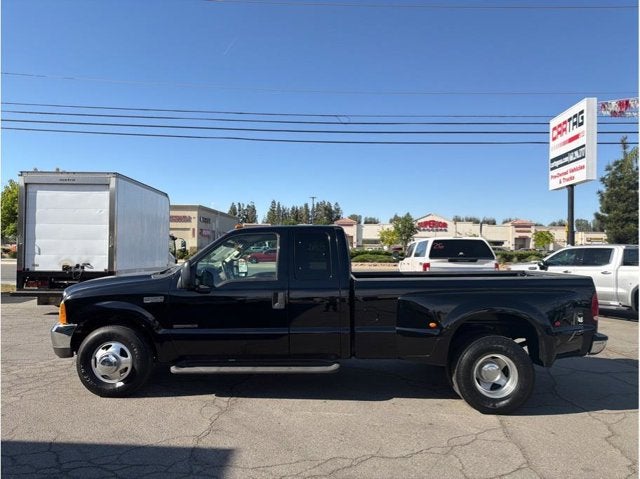

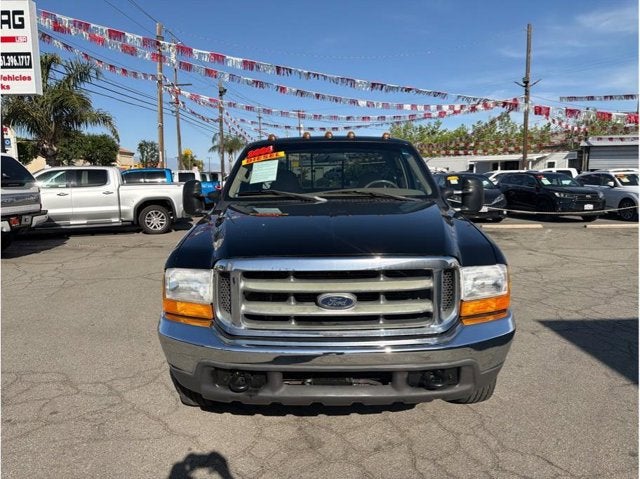

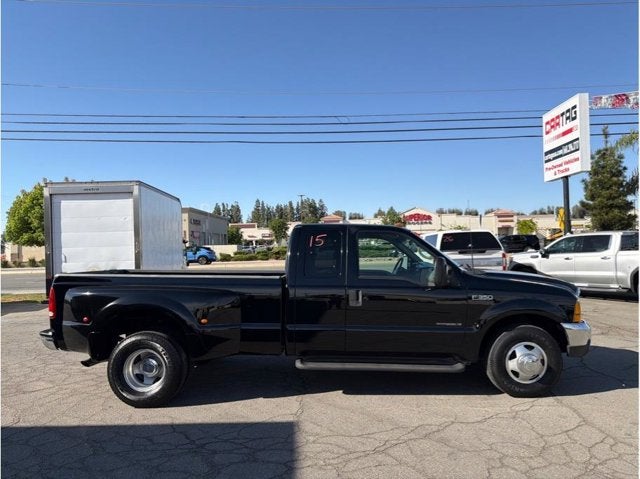

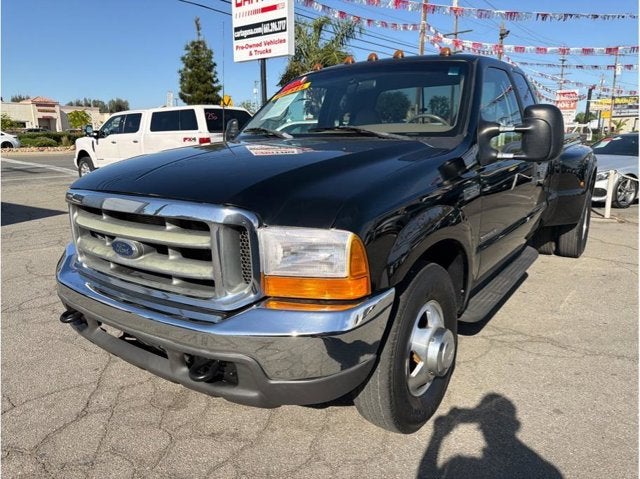

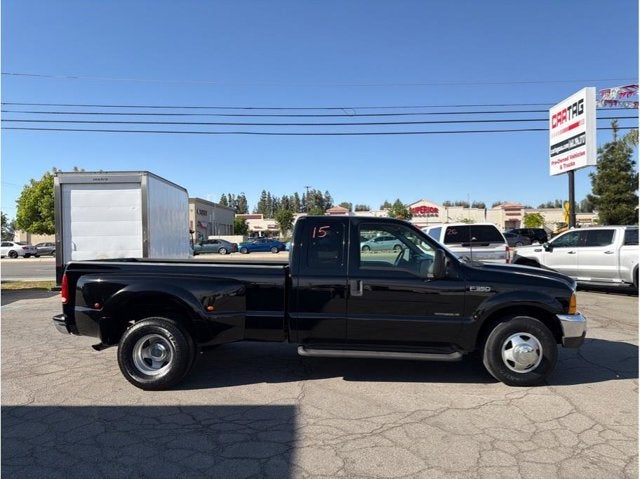

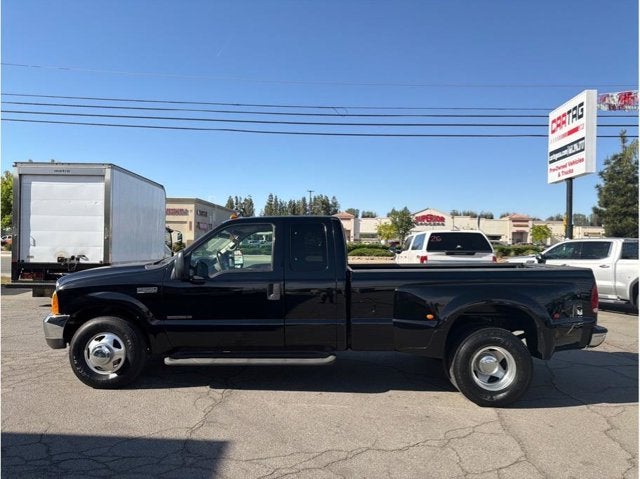

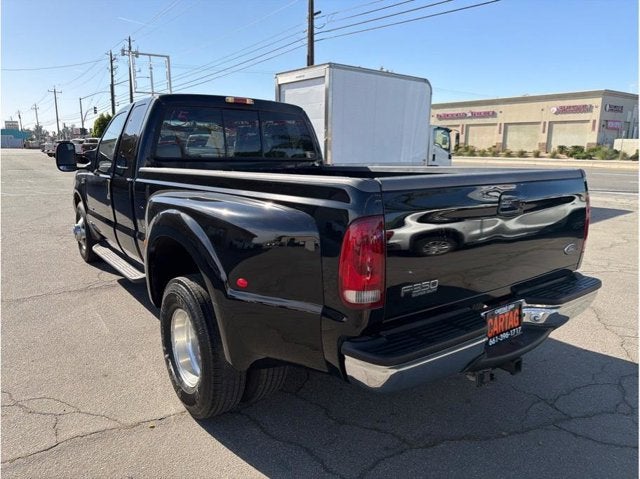

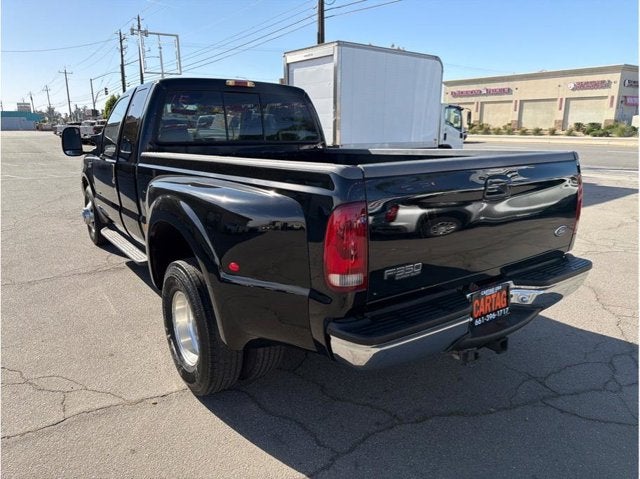

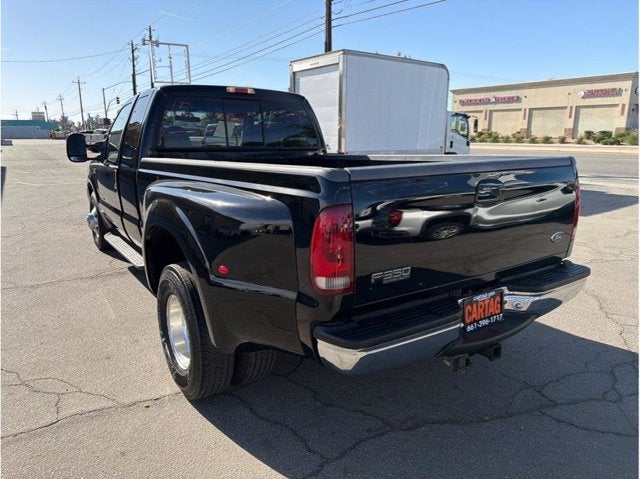

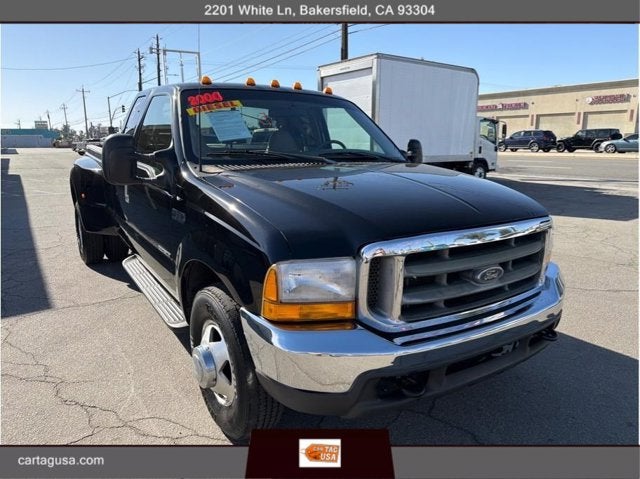

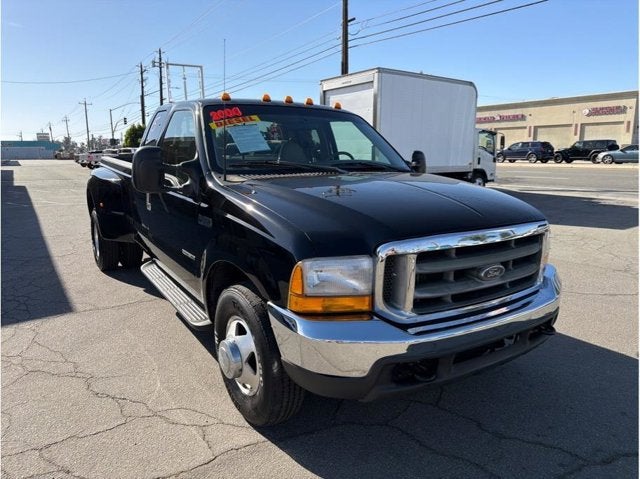

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: Supercab 8'
• Body Code: 158" WB
